1 - Deployment options

1.1 - Use W&B Multi-tenant SaaS

W&B Multi-tenant Cloud is a fully managed platform deployed in W&B’s Google Cloud Platform (GCP) account in GPC’s North America regions. W&B Multi-tenant Cloud utilizes autoscaling in GCP to ensure that the platform scales appropriately based on increases or decreases in traffic.

Data security

For non enterprise plan users, all data is only stored in the shared cloud storage and is processed with shared cloud compute services. Depending on your pricing plan, you may be subject to storage limits.

Enterprise plan users can bring their own bucket (BYOB) using the secure storage connector at the team level to store their files such as models, datasets, and more. You can configure a single bucket for multiple teams or you can use separate buckets for different W&B Teams. If you do not configure secure storage connector for a team, that data is stored in the shared cloud storage.

Identity and access management (IAM)

If you are on enterprise plan, you can use the identity and access managements capabilities for secure authentication and effective authorization in your W&B Organization. The following features are available for IAM in Multi-tenant Cloud:

• SSO authentication with OIDC or SAML. Reach out to your W&B team or support if you would like to configure SSO for your organization.
• Configure appropriate user roles at the scope of the organization and within a team.
• Define the scope of a W&B project to limit who can view, edit, and submit W&B runs to it with restricted projects.

Monitor

Organization admins can manage usage and billing for their account from the Billing tab in their account view. If using the shared cloud storage on Multi-tenant Cloud, an admin can optimize storage usage across different teams in their organization.

Maintenance

W&B Multi-tenant Cloud is a multi-tenant, fully managed platform. Since W&B Multi-tenant Cloud is managed by W&B, you do not incur the overhead and costs of provisioning and maintaining the W&B platform.

Compliance

Security controls for Multi-tenant Cloud are periodically audited internally and externally. Refer to the W&B Security Portal to request the SOC2 report and other security and compliance documents.

Next steps

Access Multi-tenant Cloud directly if you are looking for non-enterprise capabilities. To start with the enterprise plan, submit this form.

1.2 - Dedicated Cloud

Use dedicated cloud (Single-tenant SaaS)

W&B Dedicated Cloud is a single-tenant, fully managed platform deployed in W&B’s AWS, GCP or Azure cloud accounts. Each Dedicated Cloud instance has its own isolated network, compute and storage from other W&B Dedicated Cloud instances. Your W&B specific metadata and data is stored in an isolated cloud storage and is processed using isolated cloud compute services.

W&B Dedicated Cloud is available in multiple global regions for each cloud provider

Data security

You can bring your own bucket (BYOB) using the secure storage connector at the instance and team levels to store your files such as models, datasets, and more.

Similar to W&B Multi-tenant Cloud, you can configure a single bucket for multiple teams or you can use separate buckets for different teams. If you do not configure secure storage connector for a team, that data is stored in the instance level bucket.

In addition to BYOB with secure storage connector, you can utilize IP allowlisting to restrict access to your Dedicated Cloud instance from only trusted network locations.

You can also privately connect to your Dedicated Cloud instance using cloud provider’s secure connectivity solution.

Identity and access management (IAM)

Use the identity and access management capabilities for secure authentication and effective authorization in your W&B Organization. The following features are available for IAM in Dedicated Cloud instances:

• Authenticate with SSO using OpenID Connect (OIDC) or with LDAP.
• Configure appropriate user roles at the scope of the organization and within a team.
• Define the scope of a W&B project to limit who can view, edit, and submit W&B runs to it with restricted projects.
• Leverage JSON Web Tokens with identity federation to access W&B APIs.

Monitor

Use Audit logs to track user activity within your teams and to conform to your enterprise governance requirements. Also, you can view organization usage in our Dedicated Cloud instance with W&B Organization Dashboard.

Maintenance

Similar to W&B Multi-tenant Cloud, you do not incur the overhead and costs of provisioning and maintaining the W&B platform with Dedicated Cloud.

To understand how W&B manages updates on Dedicated Cloud, refer to the server release process.

Compliance

Security controls for W&B Dedicated Cloud are periodically audited internally and externally. Refer to the W&B Security Portal to request the security and compliance documents for your product assessment exercise.

Migration options

Migration to Dedicated Cloud from a Self-managed instance or Multi-tenant Cloud is supported.

Next steps

Submit this form if you are interested in using Dedicated Cloud.

1.2.1 - Supported Dedicated Cloud regions

AWS, GCP, and Azure support cloud computing services in multiple locations worldwide. Global regions help ensure that you satisfy requirements related to data residency & compliance, latency, cost efficiency and more. W&B supports many of the available global regions for Dedicated Cloud.

Supported AWS Regions

The following table lists AWS Regions that W&B currently supports for Dedicated Cloud instances.

For more information about AWS Regions, see the Regions, Availability Zones, and Local Zones in the AWS Documentation.

See What to Consider when Selecting a Region for your Workloads for an overview of factors that you should consider when choosing an AWS Region.

Supported GCP Regions

The following table lists GCP Regions that W&B currently supports for Dedicated Cloud instances.

For more information about GCP Regions, see Regions and zones in the GCP Documentation.

Supported Azure Region

The following table lists Azure regions that W&B currently supports for Dedicated Cloud instances.

For more information about Azure regions, see Azure geographies in the Azure Documentation.

1.2.2 - Export data from Dedicated cloud

If you would like to export all the data managed in your Dedicated cloud instance, you can use the W&B SDK API to extract the runs, metrics, artifacts, and more with the Import and Export API. The following table has covers some of the key exporting use cases.

If you manage artifacts stored in the Dedicated cloud with Secure Storage Connector, you may not need to export the artifacts using the W&B SDK API.

1.3 - Self-managed

Use self-managed cloud or on-prem infrastructure

Deploy W&B Server on your AWS, GCP, or Azure cloud account or within your on-premises infrastructure.

Your IT/DevOps/MLOps team is responsible for provisioning your deployment, managing upgrades, and continuously maintaining your self managed W&B Server instance.

Deploy W&B Server within self managed cloud accounts

W&B recommends that you use official W&B Terraform scripts to deploy W&B Server into your AWS, GCP, or Azure cloud account.

See specific cloud provider documentation for more information on how to set up W&B Server in AWS, GCP or Azure.

Deploy W&B Server in on-prem infrastructure

You need to configure several infrastructure components in order to set up W&B Server in your on-prem infrastructure. Some of those components include include, but are not limited to:

• (Strongly recommended) Kubernetes cluster
• MySQL 8 database cluster
• Amazon S3-compatible object storage
• Redis cache cluster

See Install on on-prem infrastructure for more information on how to install W&B Server on your on-prem infrastructure. W&B can provide recommendations for the different components and provide guidance through the installation process.

Deploy W&B Server on a custom cloud platform

You can deploy W&B Server to a cloud platform that is not AWS, GCP, or Azure. Requirements for that are similar to that for deploying in on-prem infrastructure.

Obtain your W&B Server license

You need a W&B trial license to complete your configuration of the W&B server. Open the Deploy Manager to generate a free trial license.

The URL redirects you to a Get a License for W&B Local form. Provide the following information:

1. Choose a deployment type from the Choose Platform step.
2. Select the owner of the license or add a new organization in the Basic Information step.
3. Provide a name for the instance in the Name of Instance field and optionally provide a description in the Description field in the Get a License step.
4. Select the Generate License Key button.

A page displays with an overview of your deployment along with the license associated with the instance.

1.3.1 - Tutorial: Run a W&B Server using Docker

Follow this “Hello, world!” example to learn the general workflow to install W&B Server for Dedicated Cloud and Self Managed hosting options. By the end of this demo, you will know how to host W&B Server on your local machine using a Trial Mode W&B license.

For demonstration purposes, this demo uses a local development server on port 8080 (localhost:8080).

Prerequisites

Before you get started, ensure your local machine satisfies the following requirements:

1. Install Python
2. Install Docker and ensure it is running
3. Install or upgrade the latest version of W&B:

   pip install --upgrade wandb


1. Pull the W&B Docker image

Run the following in your terminal:

wandb server start

This command pulls the latest W&B Docker image wandb/local.

2. Create a W&B account

Navigate to http://localhost:8080/signup and create an initial user account. Provide a name, email address, a username, and a password:

Click the Sign Up button to create a W&B account.

Copy your API key

After you create an account, navigate to http://localhost:8080/authorize.

Copy the W&B API key that appears on the screen. At a later step, you will need this key at a later step to verify your login credentials.

3. Generate a license

Navigate to the W&B Deploy Manager at https://deploy.wandb.ai/deploy to generate a Trial Mode W&B license.

1. Select Docker as your provider
2. Click Next.
3. Select a license owner from the Owner of license dropdown.
4. Click Next.
5. Provide a name for your license in the Name of Instance field.
6. (Optional) Provide a description about your license in the Description field.
7. Click the Generate License Key button.

After you click Generate License Key, W&B redirects you to a Deployment License page. Within the Deployment License page you can view information about your license instance such as the Deployment ID, the organization the license belongs to, and more.

4. Add trial license to your local host

1. Within the Deployment License page of your license instance, click the Copy License button.
2. Navigate to http://localhost:8080/system-admin/
3. Paste your license into to License field.
4. Click the Update settings button.

5. Check your browser is running the W&B App UI

Check that W&B is running on your local machine. Navigate to http://localhost:8080/home. You should see the W&B App UI in your browser.

6. Add programmatic access to your local W&B instance

1. Navigate to http://localhost:8080/authorize to obtain your API key.
2. Within your terminal, execute the following:

   wandb login --host=http://localhost:8080/


   If you are already logged into W&B with a different count, add the relogin flag:

   wandb login --relogin --host=http://localhost:8080


3. Paste your API key when prompted.

W&B appends a localhost profile and your API key to your .netrc profile at /Users/username/.netrc for future automatic logins.

Add a volume to retain data

All metadata and files you log to W&B are temporarily stored in the https://deploy.wandb.ai/vol directory.

Mount a volume, or external storage, to your Docker container to retain files and metadata you store in your local W&B instance. W&B recommends that you store metadata in an external MySQL database and files in an external storage bucket such as Amazon S3.

For more information on how to mount a volume and for information on how Docker manages data, see Manage data in Docker page in the Docker documentation.

Volume considerations

The underlying file store should be resizable. W&B recommends that you set up alerts to inform you when you are close to reaching minimum storage thresholds so you can resize the underlying file system.

1.3.2 - Run W&B Server on Kubernetes

W&B Kubernetes Operator

Use the W&B Kubernetes Operator to simplify deploying, administering, troubleshooting, and scaling your W&B Server deployments on Kubernetes. You can think of the operator as a smart assistant for your W&B instance.

The W&B Server architecture and design continuously evolves to expand AI developer tooling capabilities, and to provide appropriate primitives for high performance, better scalability, and easier administration. That evolution applies to the compute services, relevant storage and the connectivity between them. To help facilitate continuous updates and improvements across deployment types, W&B users a Kubernetes operator.

For more information about Kubernetes operators, see Operator pattern in the Kubernetes documentation.

Reasons for the architecture shift

Historically, the W&B application was deployed as a single deployment and pod within a Kubernetes Cluster or a single Docker container. W&B has, and continues to recommend, to externalize the Database and Object Store. Externalizing the Database and Object store decouples the application’s state.

As the application grew, the need to evolve from a monolithic container to a distributed system (microservices) was apparent. This change facilitates backend logic handling and seamlessly introduces built-in Kubernetes infrastructure capabilities. Distributed systems also supports deploying new services essential for additional features that W&B relies on.

Before 2024, any Kubernetes-related change required manually updating the terraform-kubernetes-wandb Terraform module. Updating the Terraform module ensures compatibility across cloud providers, configuring necessary Terraform variables, and executing a Terraform apply for each backend or Kubernetes-level change.

This process was not scalable since W&B Support had to assist each customer with upgrading their Terraform module.

The solution was to implement an operator that connects to a central deploy.wandb.ai server to request the latest specification changes for a given release channel and apply them. Updates are received as long as the license is valid. Helm is used as both the deployment mechanism for the W&B operator and the means for the operator to handle all configuration templating of the W&B Kubernetes stack, Helm-ception.

How it works

You can install the operator with helm or from the source. See charts/operator for detailed instructions.

The installation process creates a deployment called controller-manager and uses a custom resource definition named weightsandbiases.apps.wandb.com (shortName: wandb), that takes a single spec and applies it to the cluster:

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  name: weightsandbiases.apps.wandb.com

The controller-manager installs charts/operator-wandb based on the spec of the custom resource, release channel, and a user defined config. The configuration specification hierarchy enables maximum configuration flexibility at the user end and enables W&B to release new images, configurations, features, and Helm updates automatically.

Refer to the configuration specification hierarchy and configuration reference for configuration options.

Configuration specification hierarchy

Configuration specifications follow a hierarchical model where higher-level specifications override lower-level ones. Here’s how it works:

• Release Channel Values: This base level configuration sets default values and configurations based on the release channel set by W&B for the deployment.
• User Input Values: Users can override the default settings provided by the Release Channel Spec through the System Console.
• Custom Resource Values: The highest level of specification, which comes from the user. Any values specified here override both the User Input and Release Channel specifications. For a detailed description of the configuration options, see Configuration Reference.

This hierarchical model ensures that configurations are flexible and customizable to meet varying needs while maintaining a manageable and systematic approach to upgrades and changes.

Requirements to use the W&B Kubernetes Operator

Satisfy the following requirements to deploy W&B with the W&B Kubernetes operator:

Refer to the reference architecture. In addition, obtain a valid W&B Server license.

See this guide for a detailed explanation on how to set up and configure a self-managed installation.

Depending on the installation method, you might need to meet the following requirements:

• Kubectl installed and configured with the correct Kubernetes cluster context.
• Helm is installed.

Air-gapped installations

See the Deploy W&B in airgapped environment with Kubernetes tutorial on how to install the W&B Kubernetes Operator in an airgapped environment.

Deploy W&B Server application

This section describes different ways to deploy the W&B Kubernetes operator.

Choose one of the following:

• If you have provisioned all required external services and want to deploy W&B onto Kubernetes with Helm CLI, continue here.
• If you prefer managing infrastructure and the W&B Server with Terraform, continue here.
• If you want to utilize the W&B Cloud Terraform Modules, continue here.

Deploy W&B with Helm CLI

W&B provides a Helm Chart to deploy the W&B Kubernetes operator to a Kubernetes cluster. This approach allows you to deploy W&B Server with Helm CLI or a continuous delivery tool like ArgoCD. Make sure that the above mentioned requirements are in place.

Follow those steps to install the W&B Kubernetes Operator with Helm CLI:

1. Add the W&B Helm repository. The W&B Helm chart is available in the W&B Helm repository. Add the repo with the following commands:

helm repo add wandb https://charts.wandb.ai
helm repo update

2. Install the Operator on a Kubernetes cluster. Copy and paste the following:

helm upgrade --install operator wandb/operator -n wandb-cr --create-namespace

3. Configure the W&B operator custom resource to trigger the W&B Server installation. Create an operator.yaml file to customize the W&B Operator deployment, specifying your custom configuration. See Configuration Reference for details.

   Once you have the specification YAML created and filled with your values, run the following and the operator applies the configuration and install the W&B Server application based on your configuration.

   kubectl apply -f operator.yaml


   Wait until the deployment completes. This takes a few minutes.

4. To verify the installation using the web UI, create the first admin user account, then follow the verification steps outlined in Verify the installation.

Deploy W&B with Helm Terraform Module

This method allows for customized deployments tailored to specific requirements, leveraging Terraform’s infrastructure-as-code approach for consistency and repeatability. The official W&B Helm-based Terraform Module is located here.

The following code can be used as a starting point and includes all necessary configuration options for a production grade deployment.

module "wandb" {
  source  = "wandb/wandb/helm"

  spec = {
    values = {
      global = {
        host    = "https://<HOST_URI>"
        license = "eyJhbGnUzaH...j9ZieKQ2x5GGfw"

        bucket = {
          <details depend on the provider>
        }

        mysql = {
          <redacted>
        }
      }

      ingress = {
        annotations = {
          "a" = "b"
          "x" = "y"
        }
      }
    }
  }
}

Note that the configuration options are the same as described in Configuration Reference, but that the syntax has to follow the HashiCorp Configuration Language (HCL). The Terraform module creates the W&B custom resource definition (CRD).

To see how W&B&Biases themselves use the Helm Terraform module to deploy “Dedicated cloud” installations for customers, follow those links:

• AWS
• Azure
• GCP

Deploy W&B with W&B Cloud Terraform modules

W&B provides a set of Terraform Modules for AWS, GCP and Azure. Those modules deploy entire infrastructures including Kubernetes clusters, load balancers, MySQL databases and so on as well as the W&B Server application. The W&B Kubernetes Operator is already pre-baked with those official W&B cloud-specific Terraform Modules with the following versions:

This integration ensures that W&B Kubernetes Operator is ready to use for your instance with minimal setup, providing a streamlined path to deploying and managing W&B Server in your cloud environment.

For a detailed description on how to use these modules, refer to this section to self-managed installations section in the docs.

Verify the installation

To verify the installation, W&B recommends using the W&B CLI. The verify command executes several tests that verify all components and configurations.

Follow these steps to verify the installation:

1. Install the W&B CLI:

   pip install wandb


2. Log in to W&B:

   wandb login --host=https://YOUR_DNS_DOMAIN


   For example:

   wandb login --host=https://wandb.company-name.com


3. Verify the installation:

   wandb verify


A successful installation and fully working W&B deployment shows the following output:

Default host selected:  https://wandb.company-name.com
Find detailed logs for this test at: /var/folders/pn/b3g3gnc11_sbsykqkm3tx5rh0000gp/T/tmpdtdjbxua/wandb
Checking if logged in...................................................✅
Checking signed URL upload..............................................✅
Checking ability to send large payloads through proxy...................✅
Checking requests to base url...........................................✅
Checking requests made over signed URLs.................................✅
Checking CORs configuration of the bucket...............................✅
Checking wandb package version is up to date............................✅
Checking logged metrics, saving and downloading a file..................✅
Checking artifact save and download workflows...........................✅

Access the W&B Management Console

The W&B Kubernetes operator comes with a management console. It is located at ${HOST_URI}/console, for example https://wandb.company-name.com/ console.

There are two ways to log in to the management console:

• Option 1 (Recommended)
• Option 2

Update the W&B Kubernetes operator

This section describes how to update the W&B Kubernetes operator.

Copy and paste the code snippets below into your terminal.

1. First, update the repo with helm repo update:

   helm repo update


2. Next, update the Helm chart with helm upgrade:

   helm upgrade operator wandb/operator -n wandb-cr --reuse-values


Update the W&B Server application

You no longer need to update W&B Server application if you use the W&B Kubernetes operator.

The operator automatically updates your W&B Server application when a new version of the software of W&B is released.

Migrate self-managed instances to W&B Operator

The proceeding section describe how to migrate from self-managing your own W&B Server installation to using the W&B Operator to do this for you. The migration process depends on how you installed W&B Server:

• If you used the official W&B Cloud Terraform Modules, navigate to the appropriate documentation and follow the steps there:
  • AWS
  • GCP
  • Azure
• If you used the W&B Non-Operator Helm chart, continue here.
• If you used the W&B Non-Operator Helm chart with Terraform, continue here.
• If you created the Kubernetes resources with manifests, continue here.

Migrate to Operator-based AWS Terraform Modules

For a detailed description of the migration process, continue here.

Migrate to Operator-based GCP Terraform Modules

Reach out to Customer Support or your W&B team if you have any questions or need assistance.

Migrate to Operator-based Azure Terraform Modules

Reach out to Customer Support or your W&B team if you have any questions or need assistance.

Migrate to Operator-based Helm chart

Follow these steps to migrate to the Operator-based Helm chart:

1. Get the current W&B configuration. If W&B was deployed with an non-operator-based version of the Helm chart, export the values like this:

   helm get values wandb


   If W&B was deployed with Kubernetes manifests, export the values like this:

   kubectl get deployment wandb -o yaml


   You now have all the configuration values you need for the next step.

2. Create a file called operator.yaml. Follow the format described in the Configuration Reference. Use the values from step 1.

3. Scale the current deployment to 0 pods. This step is stops the current deployment.

   kubectl scale --replicas=0 deployment wandb


4. Update the Helm chart repo:

   helm repo update


5. Install the new Helm chart:

   helm upgrade --install operator wandb/operator -n wandb-cr --create-namespace


6. Configure the new helm chart and trigger W&B application deployment. Apply the new configuration.

   kubectl apply -f operator.yaml


   The deployment takes a few minutes to complete.

7. Verify the installation. Make sure that everything works by following the steps in Verify the installation.

8. Remove to old installation. Uninstall the old helm chart or delete the resources that were created with manifests.

Migrate to Operator-based Terraform Helm chart

Follow these steps to migrate to the Operator-based Helm chart:

1. Prepare Terraform config. Replace the Terraform code from the old deployment in your Terraform config with the one that is described here. Set the same variables as before. Do not change .tfvars file if you have one.
2. Execute Terraform run. Execute terraform init, plan and apply
3. Verify the installation. Make sure that everything works by following the steps in Verify the installation.
4. Remove to old installation. Uninstall the old helm chart or delete the resources that were created with manifests.

Configuration Reference for W&B Server

This section describes the configuration options for W&B Server application. The application receives its configuration as custom resource definition named WeightsAndBiases. Some configuration options are exposed with the below configuration, some need to be set as environment variables.

The documentation has two lists of environment variables: basic and advanced. Only use environment variables if the configuration option that you need are not exposed using Helm Chart.

The W&B Server application configuration file for a production deployment requires the following contents. This YAML file defines the desired state of your W&B deployment, including the version, environment variables, external resources like databases, and other necessary settings.

apiVersion: apps.wandb.com/v1
kind: WeightsAndBiases
metadata:
  labels:
    app.kubernetes.io/name: weightsandbiases
    app.kubernetes.io/instance: wandb
  name: wandb
  namespace: default
spec:
  values:
    global:
      host: https://<HOST_URI>
      license: eyJhbGnUzaH...j9ZieKQ2x5GGfw
      bucket:
        <details depend on the provider>
      mysql:
        <redacted>
    ingress:
      annotations:
        <redacted>

Find the full set of values in the W&B Helm repository, and change only those values you need to override.

Complete example

This is an example configuration that uses GCP Kubernetes with GCP Ingress and GCS (GCP Object storage):

apiVersion: apps.wandb.com/v1
kind: WeightsAndBiases
metadata:
  labels:
    app.kubernetes.io/name: weightsandbiases
    app.kubernetes.io/instance: wandb
  name: wandb
  namespace: default
spec:
  values:
    global:
      host: https://abc-wandb.sandbox-gcp.wandb.ml
      bucket:
        name: abc-wandb-moving-pipefish
        provider: gcs
      mysql:
        database: wandb_local
        host: 10.218.0.2
        name: wandb_local
        password: 8wtX6cJHizAZvYScjDzZcUarK4zZGjpV
        port: 3306
        user: wandb
      license: eyJhbGnUzaHgyQjQyQWhEU3...ZieKQ2x5GGfw
    ingress:
      annotations:
        ingress.gcp.kubernetes.io/pre-shared-cert: abc-wandb-cert-creative-puma
        kubernetes.io/ingress.class: gce
        kubernetes.io/ingress.global-static-ip-name: abc-wandb-operator-address

Host

 # Provide the FQDN with protocol
global:
  # example host name,  replace with your own
  host: https://abc-wandb.sandbox-gcp.wandb.ml

Object storage (bucket)

AWS

global:
  bucket:
    provider: "s3"
    name: ""
    kmsKey: ""
    region: ""

GCP

global:
  bucket:
    provider: "gcs"
    name: ""

Azure

global:
  bucket:
    provider: "az"
    name: ""
    secretKey: ""

Other providers (Minio, Ceph, etc.)

For other S3 compatible providers, set the bucket configuration as a environment variable as follows:

global:
  extraEnv:
    "BUCKET": "s3://wandb:changeme@mydb.com/wandb?tls=true"

The variable contains a connection string in this form:

s3://$ACCESS_KEY:$SECRET_KEY@$HOST/$BUCKET_NAME

You can optionally tell W&B to only connect over TLS if you configure a trusted SSL certificate for your object store. To do so, add the tls query parameter to the url:

s3://$ACCESS_KEY:$SECRET_KEY@$HOST/$BUCKET_NAME?tls=true

MySQL

global:
   mysql:
     # Example values, replace with your own
     database: wandb_local
     host: 10.218.0.2
     name: wandb_local
     password: 8wtX6cJH...ZcUarK4zZGjpV
     port: 3306
     user: wandb

License

global:
  # Example license,  replace with your own
  license: eyJhbGnUzaHgyQjQy...VFnPS_KETXg1hi

Ingress

To identify the ingress class, see this FAQ entry.

Without TLS

global:
# IMPORTANT: Ingress is on the same level in the YAML as ‘global’ (not a child)
ingress:
  class: ""

With TLS

Create a secret that contains the certificate

kubectl create secret tls wandb-ingress-tls --key wandb-ingress-tls.key --cert wandb-ingress-tls.crt

Reference the secret in the ingress configuration

global:
# IMPORTANT: Ingress is on the same level in the YAML as ‘global’ (not a child)
ingress:
  class: ""
  annotations:
    {}
    # kubernetes.io/ingress.class: nginx
    # kubernetes.io/tls-acme: "true"
  tls:
    - secretName: wandb-ingress-tls
      hosts:
        - <HOST_URI>

In case of Nginx you might have to add the following annotation:

ingress:
  annotations:
    nginx.ingress.kubernetes.io/proxy-body-size: 64m

Custom Kubernetes ServiceAccounts

Specify custom Kubernetes service accounts to run the W&B pods.

The following snippet creates a service account as part of the deployment with the specified name:

app:
  serviceAccount:
    name: custom-service-account
    create: true

parquet:
  serviceAccount:
    name: custom-service-account
    create: true

global:
  ...

The subsystems “app” and “parquet” run under the specified service account. The other subsystems run under the default service account.

If the service account already exists on the cluster, set create: false:

app:
  serviceAccount:
    name: custom-service-account
    create: false

parquet:
  serviceAccount:
    name: custom-service-account
    create: false

global:
  ...

You can specify service accounts on different subsystems such as app, parquet, console, and others:

app:
  serviceAccount:
    name: custom-service-account
    create: true

console:
  serviceAccount:
    name: custom-service-account
    create: true

global:
  ...

The service accounts can be different between the subsystems:

app:
  serviceAccount:
    name: custom-service-account
    create: false

console:
  serviceAccount:
    name: another-custom-service-account
    create: true

global:
  ...

External Redis

redis:
  install: false

global:
  redis:
    host: ""
    port: 6379
    password: ""
    parameters: {}
    caCert: ""

Alternatively with redis password in a Kubernetes secret:

kubectl create secret generic redis-secret --from-literal=redis-password=supersecret

Reference it in below configuration:

redis:
  install: false

global:
  redis:
    host: redis.example
    port: 9001
    auth:
      enabled: true
      secret: redis-secret
      key: redis-password

LDAP

Without TLS

global:
  ldap:
    enabled: true
    # LDAP server address including "ldap://" or "ldaps://"
    host:
    # LDAP search base to use for finding users
    baseDN:
    # LDAP user to bind with (if not using anonymous bind)
    bindDN:
    # Secret name and key with LDAP password to bind with (if not using anonymous bind)
    bindPW:
    # LDAP attribute for email and group ID attribute names as comma separated string values.
    attributes:
    # LDAP group allow list
    groupAllowList:
    # Enable LDAP TLS
    tls: false

With TLS

The LDAP TLS cert configuration requires a config map pre-created with the certificate content.

To create the config map you can use the following command:

kubectl create configmap ldap-tls-cert --from-file=certificate.crt

And use the config map in the YAML like the example below

global:
  ldap:
    enabled: true
    # LDAP server address including "ldap://" or "ldaps://"
    host:
    # LDAP search base to use for finding users
    baseDN:
    # LDAP user to bind with (if not using anonymous bind)
    bindDN:
    # Secret name and key with LDAP password to bind with (if not using anonymous bind)
    bindPW:
    # LDAP attribute for email and group ID attribute names as comma separated string values.
    attributes:
    # LDAP group allow list
    groupAllowList:
    # Enable LDAP TLS
    tls: true
    # ConfigMap name and key with CA certificate for LDAP server
    tlsCert:
      configMap:
        name: "ldap-tls-cert"
        key: "certificate.crt"

OIDC SSO

global:
  auth:
    sessionLengthHours: 720
    oidc:
      clientId: ""
      secret: ""
      authMethod: ""
      issuer: ""

SMTP

global:
  email:
    smtp:
      host: ""
      port: 587
      user: ""
      password: ""

Environment Variables

global:
  extraEnv:
    GLOBAL_ENV: "example"

Custom certificate authority

customCACerts is a list and can take many certificates. Certificate authorities specified in customCACerts only apply to the W&B Server application.

global:
  customCACerts:
  - |
    -----BEGIN CERTIFICATE-----
    MIIBnDCCAUKgAwIBAg.....................fucMwCgYIKoZIzj0EAwIwLDEQ
    MA4GA1UEChMHSG9tZU.....................tZUxhYiBSb290IENBMB4XDTI0
    MDQwMTA4MjgzMFoXDT.....................oNWYggsMo8O+0mWLYMAoGCCqG
    SM49BAMCA0gAMEUCIQ.....................hwuJgyQRaqMI149div72V2QIg
    P5GD+5I+02yEp58Cwxd5Bj2CvyQwTjTO4hiVl1Xd0M0=
    -----END CERTIFICATE-----
  - |
    -----BEGIN CERTIFICATE-----
    MIIBxTCCAWugAwIB.......................qaJcwCgYIKoZIzj0EAwIwLDEQ
    MA4GA1UEChMHSG9t.......................tZUxhYiBSb290IENBMB4XDTI0
    MDQwMTA4MjgzMVoX.......................UK+moK4nZYvpNpqfvz/7m5wKU
    SAAwRQIhAIzXZMW4.......................E8UFqsCcILdXjAiA7iTluM0IU
    aIgJYVqKxXt25blH/VyBRzvNhViesfkNUQ==
    -----END CERTIFICATE-----

Configuration Reference for W&B Operator

This section describes configuration options for W&B Kubernetes operator (wandb-controller-manager). The operator receives its configuration in the form of a YAML file.

By default, the W&B Kubernetes operator does not need a configuration file. Create a configuration file if required. For example, you might need a configuration file to specify custom certificate authorities, deploy in an air gap environment and so forth.

Find the full list of spec customization in the Helm repository.

Custom CA

A custom certificate authority (customCACerts), is a list and can take many certificates. Those certificate authorities when added only apply to the W&B Kubernetes operator (wandb-controller-manager).

customCACerts:
- |
  -----BEGIN CERTIFICATE-----
  MIIBnDCCAUKgAwIBAg.....................fucMwCgYIKoZIzj0EAwIwLDEQ
  MA4GA1UEChMHSG9tZU.....................tZUxhYiBSb290IENBMB4XDTI0
  MDQwMTA4MjgzMFoXDT.....................oNWYggsMo8O+0mWLYMAoGCCqG
  SM49BAMCA0gAMEUCIQ.....................hwuJgyQRaqMI149div72V2QIg
  P5GD+5I+02yEp58Cwxd5Bj2CvyQwTjTO4hiVl1Xd0M0=
  -----END CERTIFICATE-----
- |
  -----BEGIN CERTIFICATE-----
  MIIBxTCCAWugAwIB.......................qaJcwCgYIKoZIzj0EAwIwLDEQ
  MA4GA1UEChMHSG9t.......................tZUxhYiBSb290IENBMB4XDTI0
  MDQwMTA4MjgzMVoX.......................UK+moK4nZYvpNpqfvz/7m5wKU
  SAAwRQIhAIzXZMW4.......................E8UFqsCcILdXjAiA7iTluM0IU
  aIgJYVqKxXt25blH/VyBRzvNhViesfkNUQ==
  -----END CERTIFICATE-----

FAQ

How to get the W&B Operator Console password

See Accessing the W&B Kubernetes Operator Management Console.

How to access the W&B Operator Console if Ingress doesn’t work

Execute the following command on a host that can reach the Kubernetes cluster:

kubectl port-forward svc/wandb-console 8082

Access the console in the browser with https://localhost:8082/ console.

See Accessing the W&B Kubernetes Operator Management Console on how to get the password (Option 2).

How to view W&B Server logs

The application pod is named wandb-app-xxx.

kubectl get pods
kubectl logs wandb-XXXXX-XXXXX

How to identify the Kubernetes ingress class

You can get the ingress class installed in your cluster by running

kubectl get ingressclass

1.3.2.1 - Kubernetes operator for air-gapped instances

Introduction

This guide provides step-by-step instructions to deploy the W&B Platform in air-gapped customer-managed environments.

Use an internal repository or registry to host the Helm charts and container images. Run all commands in a shell console with proper access to the Kubernetes cluster.

You could utilize similar commands in any continuous delivery tooling that you use to deploy Kubernetes applications.

Step 1: Prerequisites

Before starting, make sure your environment meets the following requirements:

• Kubernetes version >= 1.28
• Helm version >= 3
• Access to an internal container registry with the required W&B images
• Access to an internal Helm repository for W&B Helm charts

Step 2: Prepare internal container registry

Before proceeding with the deployment, you must ensure that the following container images are available in your internal container registry. These images are critical for the successful deployment of W&B components.

wandb/local                                             0.59.2
wandb/console                                           2.12.2
wandb/controller                                        1.13.0
otel/opentelemetry-collector-contrib                    0.97.0
bitnami/redis                                           7.2.4-debian-12-r9
quay.io/prometheus/prometheus                           v2.47.0
quay.io/prometheus-operator/prometheus-config-reloader  v0.67.0

Step 3: Prepare internal Helm chart repository

Along with the container images, you also must ensure that the following Helm charts are available in your internal Helm Chart repository.

• W&B Operator
• W&B Platform

The operator chart is used to deploy the W&B Operator, or the Controller Manager. While the platform chart is used to deploy the W&B Platform using the values configured in the custom resource definition (CRD).

Step 4: Set up Helm repository

Now, configure the Helm repository to pull the W&B Helm charts from your internal repository. Run the following commands to add and update the Helm repository:

helm repo add local-repo https://charts.yourdomain.com
helm repo update

Step 5: Install the Kubernetes operator

The W&B Kubernetes operator, also known as the controller manager, is responsible for managing the W&B platform components. To install it in an air-gapped environment, you must configure it to use your internal container registry.

To do so, you must override the default image settings to use your internal container registry and set the key airgapped: true to indicate the expected deployment type. Update the values.yaml file as shown below:

image:
  repository: registry.yourdomain.com/library/controller
  tag: 1.13.3
airgapped: true

You can find all supported values in the official Kubernetes operator repository.

Step 6: Configure CustomResourceDefinitions

After installing the W&B Kubernetes operator, you must configure the Custom Resource Definitions (CRDs) to point to your internal Helm repository and container registry.

This configuration ensures that the Kubernetes operators uses your internal registry and repository are when it deploys the required components of the W&B platform.

Below is an example of how to configure the CRD.

apiVersion: apps.wandb.com/v1
kind: WeightsAndBiases
metadata:
  labels:
    app.kubernetes.io/instance: wandb
    app.kubernetes.io/name: weightsandbiases
  name: wandb
  namespace: default

spec:
  chart:
    url: http://charts.yourdomain.com
    name: operator-wandb
    version: 0.18.0

  values:
    global:
      host: https://wandb.yourdomain.com
      license: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
      bucket:
        accessKey: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
        secretKey: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
        name: s3.yourdomain.com:port #Ex.: s3.yourdomain.com:9000
        path: bucket_name
        provider: s3
        region: us-east-1
      mysql:
        database: wandb
        host: mysql.home.lab
        password: password
        port: 3306
        user: wandb

    # Ensre it's set to use your own MySQL
    mysql:
      install: false

    app:
      image:
        repository: registry.yourdomain.com/local
        tag: 0.59.2

    console:
      image:
        repository: registry.yourdomain.com/console
        tag: 2.12.2

    ingress:
      annotations:
        nginx.ingress.kubernetes.io/proxy-body-size: 64m
      class: nginx



To deploy the W&B platform, the Kubernetes Operator uses the operator-wandb chart from your internal repository and use the values from your CRD to configure the Helm chart.

You can find all supported values in the official Kubernetes operator repository.

Step 7: Deploy the W&B platform

Finally, after setting up the Kubernetes operator and the CRD, deploy the W&B platform using the following command:

kubectl apply -f wandb.yaml

FAQ

Refer to the below frequently asked questions (FAQs) and troubleshooting tips during the deployment process:

There is another ingress class. Can that class be used?

Yes, you can configure your ingress class by modifying the ingress settings in values.yaml.

The certificate bundle has more than one certificate. Would that work?

You must split the certificates into multiple entries in the customCACerts section of values.yaml.

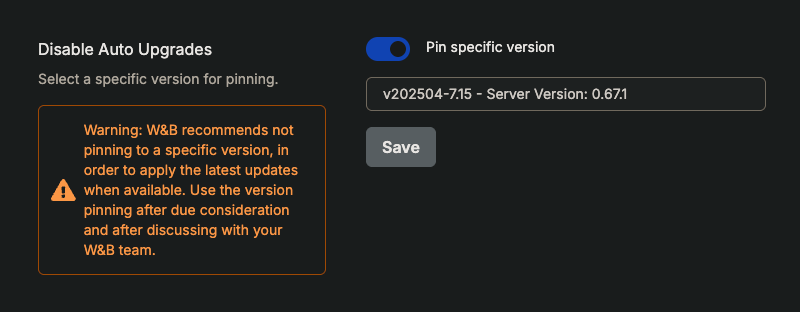

How do you prevent the Kubernetes operator from applying unattended updates. Is that possible?

You can turn off auto-updates from the W&B console. Reach out to your W&B team for any questions on the supported versions. Also, note that W&B supports platform versions released in last 6 months. W&B recommends performing periodic upgrades.

Does the deployment work if the environment has no connection to public repositories?

As long as you have enabled the airgapped: true configuration, the Kubernetes operator does not attempt to reach public repositories. The Kubernetes operator attempts to use your internal resources.

1.3.3 - Install on public cloud

1.3.3.1 - Deploy W&B Platform on AWS

W&B recommends using the W&B Server AWS Terraform Module to deploy the platform on AWS.

Before you start, W&B recommends that you choose one of the remote backends available for Terraform to store the State File.

The State File is the necessary resource to roll out upgrades or make changes in your deployment without recreating all components.

The Terraform Module deploys the following mandatory components:

• Load Balancer
• AWS Identity & Access Management (IAM)
• AWS Key Management System (KMS)
• Amazon Aurora MySQL
• Amazon VPC
• Amazon S3
• Amazon Route53
• Amazon Certificate Manager (ACM)
• Amazon Elastic Load Balancing (ALB)
• Amazon Secrets Manager

Other deployment options can also include the following optional components:

• Elastic Cache for Redis
• SQS

Pre-requisite permissions

The account that runs Terraform needs to be able to create all components described in the Introduction and permission to create IAM Policies and IAM Roles and assign roles to resources.

General steps

The steps on this topic are common for any deployment option covered by this documentation.

1. Prepare the development environment.

   • Install Terraform
   • W&B recommend creating a Git repository for version control.

2. Create the terraform.tfvars file.

   The tvfars file content can be customized according to the installation type, but the minimum recommended will look like the example below.

   namespace                  = "wandb"
   license                    = "xxxxxxxxxxyyyyyyyyyyyzzzzzzz"
   subdomain                  = "wandb-aws"
   domain_name                = "wandb.ml"
   zone_id                    = "xxxxxxxxxxxxxxxx"
   allowed_inbound_cidr       = ["0.0.0.0/0"]
   allowed_inbound_ipv6_cidr  = ["::/0"]


   Ensure to define variables in your tvfars file before you deploy because the namespace variable is a string that prefixes all resources created by Terraform.

   The combination of subdomain and domain will form the FQDN that W&B will be configured. In the example above, the W&B FQDN will be wandb-aws.wandb.ml and the DNS zone_id where the FQDN record will be created.

   Both allowed_inbound_cidr and allowed_inbound_ipv6_cidr also require setting. In the module, this is a mandatory input. The proceeding example permits access from any source to the W&B installation.

3. Create the file versions.tf

   This file will contain the Terraform and Terraform provider versions required to deploy W&B in AWS

   provider "aws" {
     region = "eu-central-1"

     default_tags {
       tags = {
         GithubRepo = "terraform-aws-wandb"
         GithubOrg  = "wandb"
         Enviroment = "Example"
         Example    = "PublicDnsExternal"
       }
     }
   }


   Refer to the Terraform Official Documentation to configure the AWS provider.

   Optionally, but highly recommended, add the remote backend configuration mentioned at the beginning of this documentation.

4. Create the file variables.tf

   For every option configured in the terraform.tfvars Terraform requires a correspondent variable declaration.

   variable "namespace" {
     type        = string
     description = "Name prefix used for resources"
   }

   variable "domain_name" {
     type        = string
     description = "Domain name used to access instance."
   }

   variable "subdomain" {
     type        = string
     default     = null
     description = "Subdomain for accessing the Weights & Biases UI."
   }

   variable "license" {
     type = string
   }

   variable "zone_id" {
     type        = string
     description = "Domain for creating the Weights & Biases subdomain on."
   }

   variable "allowed_inbound_cidr" {
    description = "CIDRs allowed to access wandb-server."
    nullable    = false
    type        = list(string)
   }

   variable "allowed_inbound_ipv6_cidr" {
    description = "CIDRs allowed to access wandb-server."
    nullable    = false
    type        = list(string)
   }


Recommended deployment option

This is the most straightforward deployment option configuration that creates all Mandatory components and installs in the Kubernetes Cluster the latest version of W&B.

1. Create the main.tf

   In the same directory where you created the files in the General Steps, create a file main.tf with the following content:

   module "wandb_infra" {
     source  = "wandb/wandb/aws"
     version = "~>2.0"

     namespace   = var.namespace
     domain_name = var.domain_name
     subdomain   = var.subdomain
     zone_id     = var.zone_id

     allowed_inbound_cidr           = var.allowed_inbound_cidr
     allowed_inbound_ipv6_cidr      = var.allowed_inbound_ipv6_cidr

     public_access                  = true
     external_dns                   = true
     kubernetes_public_access       = true
     kubernetes_public_access_cidrs = ["0.0.0.0/0"]
   }

   data "aws_eks_cluster" "app_cluster" {
     name = module.wandb_infra.cluster_id
   }

   data "aws_eks_cluster_auth" "app_cluster" {
     name = module.wandb_infra.cluster_id
   }

   provider "kubernetes" {
     host                   = data.aws_eks_cluster.app_cluster.endpoint
     cluster_ca_certificate = base64decode(data.aws_eks_cluster.app_cluster.certificate_authority.0.data)
     token                  = data.aws_eks_cluster_auth.app_cluster.token
   }

   module "wandb_app" {
     source  = "wandb/wandb/kubernetes"
     version = "~>1.0"

     license                    = var.license
     host                       = module.wandb_infra.url
     bucket                     = "s3://${module.wandb_infra.bucket_name}"
     bucket_aws_region          = module.wandb_infra.bucket_region
     bucket_queue               = "internal://"
     database_connection_string = "mysql://${module.wandb_infra.database_connection_string}"

     # TF attempts to deploy while the work group is
     # still spinning up if you do not wait
     depends_on = [module.wandb_infra]
   }

   output "bucket_name" {
     value = module.wandb_infra.bucket_name
   }

   output "url" {
     value = module.wandb_infra.url
   }


2. Deploy W&B

   To deploy W&B, execute the following commands:

   terraform init
   terraform apply -var-file=terraform.tfvars


Enable REDIS

Another deployment option uses Redis to cache the SQL queries and speed up the application response when loading the metrics for the experiments.

You need to add the option create_elasticache_subnet = true to the same main.tf file described in the Recommended deployment section to enable the cache.

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "~>2.0"

  namespace   = var.namespace
  domain_name = var.domain_name
  subdomain   = var.subdomain
  zone_id     = var.zone_id
	**create_elasticache_subnet = true**
}
[...]

Enable message broker (queue)

Deployment option 3 consists of enabling the external message broker. This is optional because the W&B brings embedded a broker. This option doesn’t bring a performance improvement.

The AWS resource that provides the message broker is the SQS, and to enable it, you will need to add the option use_internal_queue = false to the same main.tf described in the Recommended deployment section.

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "~>2.0"

  namespace   = var.namespace
  domain_name = var.domain_name
  subdomain   = var.subdomain
  zone_id     = var.zone_id
  **use_internal_queue = false**

[...]
}

Other deployment options

You can combine all three deployment options adding all configurations to the same file. The Terraform Module provides several options that can be combined along with the standard options and the minimal configuration found in Deployment - Recommended

Manual configuration

To use an Amazon S3 bucket as a file storage backend for W&B, you will need to:

• Create an Amazon S3 Bucket and Bucket Notifications
• Create SQS Queue
• Grant Permissions to Node Running W&B

you’ll need to create a bucket, along with an SQS queue configured to receive object creation notifications from that bucket. Your instance will need permissions to read from this queue.

Create an S3 Bucket and Bucket Notifications

Follow the procedure bellow to create an Amazon S3 bucket and enable bucket notifications.

1. Navigate to Amazon S3 in the AWS Console.
2. Select Create bucket.
3. Within the Advanced settings, select Add notification within the Events section.
4. Configure all object creation events to be sent to the SQS Queue you configured earlier.

Enable CORS access. Your CORS configuration should look like the following:

<?xml version="1.0" encoding="UTF-8"?>
<CORSConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
<CORSRule>
    <AllowedOrigin>http://YOUR-W&B-SERVER-IP</AllowedOrigin>
    <AllowedMethod>GET</AllowedMethod>
    <AllowedMethod>PUT</AllowedMethod>
    <AllowedHeader>*</AllowedHeader>
</CORSRule>
</CORSConfiguration>

Create an SQS Queue

Follow the procedure below to create an SQS Queue:

1. Navigate to Amazon SQS in the AWS Console.
2. Select Create queue.
3. From the Details section, select a Standard queue type.
4. Within the Access policy section, add permission to the following principals:

• SendMessage
• ReceiveMessage
• ChangeMessageVisibility
• DeleteMessage
• GetQueueUrl

Optionally add an advanced access policy in the Access Policy section. For example, the policy for accessing Amazon SQS with a statement is as follows:

{
    "Version" : "2012-10-17",
    "Statement" : [
      {
        "Effect" : "Allow",
        "Principal" : "*",
        "Action" : ["sqs:SendMessage"],
        "Resource" : "<sqs-queue-arn>",
        "Condition" : {
          "ArnEquals" : { "aws:SourceArn" : "<s3-bucket-arn>" }
        }
      }
    ]
}

Grant permissions to node that runs W&B

The node where W&B server is running must be configured to permit access to Amazon S3 and Amazon SQS. Depending on the type of server deployment you have opted for, you may need to add the following policy statements to your node role:

{
   "Statement":[
      {
         "Sid":"",
         "Effect":"Allow",
         "Action":"s3:*",
         "Resource":"arn:aws:s3:::<WANDB_BUCKET>"
      },
      {
         "Sid":"",
         "Effect":"Allow",
         "Action":[
            "sqs:*"
         ],
         "Resource":"arn:aws:sqs:<REGION>:<ACCOUNT>:<WANDB_QUEUE>"
      }
   ]
}

Configure W&B server

Finally, configure your W&B Server.

1. Navigate to the W&B settings page at http(s)://YOUR-W&B-SERVER-HOST/system-admin.
2. Enable the **Use an external file storage backend option
3. Provide information about your Amazon S3 bucket, region, and Amazon SQS queue in the following format:

• File Storage Bucket: s3://<bucket-name>
• File Storage Region (AWS only): <region>
• Notification Subscription: sqs://<queue-name>

4. Select Update settings to apply the new settings.

Upgrade your W&B version

Follow the steps outlined here to update W&B:

1. Add wandb_version to your configuration in your wandb_app module. Provide the version of W&B you want to upgrade to. For example, the following line specifies W&B version 0.48.1:

module "wandb_app" {
    source  = "wandb/wandb/kubernetes"
    version = "~>1.0"

    license       = var.license
    wandb_version = "0.48.1"

2. After you update your configuration, complete the steps described in the Recommended deployment section.

Migrate to operator-based AWS Terraform modules

This section details the steps required to upgrade from pre-operator to post-operator environments using the terraform-aws-wandb module.

Before and after architecture

Previously, the W&B architecture used:

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "1.16.10"
  ...
}

to control the infrastructure:

and this module to deploy the W&B Server:

module "wandb_app" {
  source  = "wandb/wandb/kubernetes"
  version = "1.12.0"
}

Post-transition, the architecture uses:

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "4.7.2"
  ...
}

to manage both the installation of infrastructure and the W&B Server to the Kubernetes cluster, thus eliminating the need for the module "wandb_app" in post-operator.tf.

This architectural shift enables additional features (like OpenTelemetry, Prometheus, HPAs, Kafka, and image updates) without requiring manual Terraform operations by SRE/Infrastructure teams.

To commence with a base installation of the W&B Pre-Operator, ensure that post-operator.tf has a .disabled file extension and pre-operator.tf is active (that does not have a .disabled extension). Those files can be found here.

Prerequisites

Before initiating the migration process, ensure the following prerequisites are met:

• Egress: The deployment can’t be airgapped. It needs access to deploy.wandb.ai to get the latest spec for the Release Channel.
• AWS Credentials: Proper AWS credentials configured to interact with your AWS resources.
• Terraform Installed: The latest version of Terraform should be installed on your system.
• Route53 Hosted Zone: An existing Route53 hosted zone corresponding to the domain under which the application will be served.
• Pre-Operator Terraform Files: Ensure pre-operator.tf and associated variable files like pre-operator.tfvars are correctly set up.

Pre-Operator set up

Execute the following Terraform commands to initialize and apply the configuration for the Pre-Operator setup:

terraform init -upgrade
terraform apply -var-file=./pre-operator.tfvars

pre-operator.tf should look something like this:

namespace     = "operator-upgrade"
domain_name   = "sandbox-aws.wandb.ml"
zone_id       = "Z032246913CW32RVRY0WU"
subdomain     = "operator-upgrade"
wandb_license = "ey..."
wandb_version = "0.51.2"

The pre-operator.tf configuration calls two modules:

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "1.16.10"
  ...
}

This module spins up the infrastructure.

module "wandb_app" {
  source  = "wandb/wandb/kubernetes"
  version = "1.12.0"
}

This module deploys the application.

Post-Operator Setup

Make sure that pre-operator.tf has a .disabled extension, and post-operator.tf is active.

The post-operator.tfvars includes additional variables:

...
# wandb_version = "0.51.2" is now managed via the Release Channel or set in the User Spec.

# Required Operator Variables for Upgrade:
size                 = "small"
enable_dummy_dns     = true
enable_operator_alb  = true
custom_domain_filter = "sandbox-aws.wandb.ml"

Run the following commands to initialize and apply the Post-Operator configuration:

terraform init -upgrade
terraform apply -var-file=./post-operator.tfvars

The plan and apply steps will update the following resources:

actions:
  create:
    - aws_efs_backup_policy.storage_class
    - aws_efs_file_system.storage_class
    - aws_efs_mount_target.storage_class["0"]
    - aws_efs_mount_target.storage_class["1"]
    - aws_eks_addon.efs
    - aws_iam_openid_connect_provider.eks
    - aws_iam_policy.secrets_manager
    - aws_iam_role_policy_attachment.ebs_csi
    - aws_iam_role_policy_attachment.eks_efs
    - aws_iam_role_policy_attachment.node_secrets_manager
    - aws_security_group.storage_class_nfs
    - aws_security_group_rule.nfs_ingress
    - random_pet.efs
    - aws_s3_bucket_acl.file_storage
    - aws_s3_bucket_cors_configuration.file_storage
    - aws_s3_bucket_ownership_controls.file_storage
    - aws_s3_bucket_server_side_encryption_configuration.file_storage
    - helm_release.operator
    - helm_release.wandb
    - aws_cloudwatch_log_group.this[0]
    - aws_iam_policy.default
    - aws_iam_role.default
    - aws_iam_role_policy_attachment.default
    - helm_release.external_dns
    - aws_default_network_acl.this[0]
    - aws_default_route_table.default[0]
    - aws_iam_policy.default
    - aws_iam_role.default
    - aws_iam_role_policy_attachment.default
    - helm_release.aws_load_balancer_controller

  update_in_place:
    - aws_iam_policy.node_IMDSv2
    - aws_iam_policy.node_cloudwatch
    - aws_iam_policy.node_kms
    - aws_iam_policy.node_s3
    - aws_iam_policy.node_sqs
    - aws_eks_cluster.this[0]
    - aws_elasticache_replication_group.default
    - aws_rds_cluster.this[0]
    - aws_rds_cluster_instance.this["1"]
    - aws_default_security_group.this[0]
    - aws_subnet.private[0]
    - aws_subnet.private[1]
    - aws_subnet.public[0]
    - aws_subnet.public[1]
    - aws_launch_template.workers["primary"]

  destroy:
    - kubernetes_config_map.config_map
    - kubernetes_deployment.wandb
    - kubernetes_priority_class.priority
    - kubernetes_secret.secret
    - kubernetes_service.prometheus
    - kubernetes_service.service
    - random_id.snapshot_identifier[0]

  replace:
    - aws_autoscaling_attachment.autoscaling_attachment["primary"]
    - aws_route53_record.alb
    - aws_eks_node_group.workers["primary"]

You should see something like this:

Note that in post-operator.tf, there is a single:

module "wandb_infra" {
  source  = "wandb/wandb/aws"
  version = "4.7.2"
  ...
}

Changes in the post-operator configuration:

1. Update Required Providers: Change required_providers.aws.version from 3.6 to 4.0 for provider compatibility.
2. DNS and Load Balancer Configuration: Integrate enable_dummy_dns and enable_operator_alb to manage DNS records and AWS Load Balancer setup through an Ingress.
3. License and Size Configuration: Transfer the license and size parameters directly to the wandb_infra module to match new operational requirements.
4. Custom Domain Handling: If necessary, use custom_domain_filter to troubleshoot DNS issues by checking the External DNS pod logs within the kube-system namespace.
5. Helm Provider Configuration: Enable and configure the Helm provider to manage Kubernetes resources effectively:

provider "helm" {
  kubernetes {
    host                   = data.aws_eks_cluster.app_cluster.endpoint
    cluster_ca_certificate = base64decode(data.aws_eks_cluster.app_cluster.certificate_authority[0].data)
    token                  = data.aws_eks_cluster_auth.app_cluster.token
    exec {
      api_version = "client.authentication.k8s.io/v1beta1"
      args        = ["eks", "get-token", "--cluster-name", data.aws_eks_cluster.app_cluster.name]
      command     = "aws"
    }
  }
}

This comprehensive setup ensures a smooth transition from the Pre-Operator to the Post-Operator configuration, leveraging new efficiencies and capabilities enabled by the operator model.

1.3.3.2 - Deploy W&B Platform on GCP

If you’ve determined to self-managed W&B Server, W&B recommends using the W&B Server GCP Terraform Module to deploy the platform on GCP.

The module documentation is extensive and contains all available options that can be used.

Before you start, W&B recommends that you choose one of the remote backends available for Terraform to store the State File.

The State File is the necessary resource to roll out upgrades or make changes in your deployment without recreating all components.

The Terraform Module will deploy the following mandatory components:

• VPC
• Cloud SQL for MySQL
• Cloud Storage Bucket
• Google Kubernetes Engine
• KMS Crypto Key
• Load Balancer

Other deployment options can also include the following optional components:

• Memory store for Redis
• Pub/Sub messages system

Pre-requisite permissions

The account that will run the terraform need to have the role roles/owner in the GCP project used.

General steps

The steps on this topic are common for any deployment option covered by this documentation.

1. Prepare the development environment.

   • Install Terraform
   • We recommend creating a Git repository with the code that will be used, but you can keep your files locally.
   • Create a project in Google Cloud Console
   • Authenticate with GCP (make sure to install gcloud before) gcloud auth application-default login

2. Create the terraform.tfvars file.

   The tvfars file content can be customized according to the installation type, but the minimum recommended will look like the example below.

   project_id  = "wandb-project"
   region      = "europe-west2"
   zone        = "europe-west2-a"
   namespace   = "wandb"
   license     = "xxxxxxxxxxyyyyyyyyyyyzzzzzzz"
   subdomain   = "wandb-gcp"
   domain_name = "wandb.ml"


   The variables defined here need to be decided before the deployment because. The namespace variable will be a string that will prefix all resources created by Terraform.

   The combination of subdomain and domain will form the FQDN that W&B will be configured. In the example above, the W&B FQDN will be wandb-gcp.wandb.ml

3. Create the file variables.tf

   For every option configured in the terraform.tfvars Terraform requires a correspondent variable declaration.

   variable "project_id" {
     type        = string
     description = "Project ID"
   }

   variable "region" {
     type        = string
     description = "Google region"
   }

   variable "zone" {
     type        = string
     description = "Google zone"
   }

   variable "namespace" {
     type        = string
     description = "Namespace prefix used for resources"
   }

   variable "domain_name" {
     type        = string
     description = "Domain name for accessing the Weights & Biases UI."
   }

   variable "subdomain" {
     type        = string
     description = "Subdomain for access the Weights & Biases UI."
   }

   variable "license" {
     type        = string
     description = "W&B License"
   }


Deployment - Recommended (~20 mins)

This is the most straightforward deployment option configuration that will create all Mandatory components and install in the Kubernetes Cluster the latest version of W&B.

1. Create the main.tf

   In the same directory where you created the files in the General Steps, create a file main.tf with the following content:

   provider "google" {
    project = var.project_id
    region  = var.region
    zone    = var.zone
   }

   provider "google-beta" {
    project = var.project_id
    region  = var.region
    zone    = var.zone
   }

   data "google_client_config" "current" {}

   provider "kubernetes" {
     host                   = "https://${module.wandb.cluster_endpoint}"
     cluster_ca_certificate = base64decode(module.wandb.cluster_ca_certificate)
     token                  = data.google_client_config.current.access_token
   }

   # Spin up all required services
   module "wandb" {
     source  = "wandb/wandb/google"
     version = "~> 5.0"

     namespace   = var.namespace
     license     = var.license
     domain_name = var.domain_name
     subdomain   = var.subdomain
   }

   # You'll want to update your DNS with the provisioned IP address
   output "url" {
     value = module.wandb.url
   }

   output "address" {
     value = module.wandb.address
   }

   output "bucket_name" {
     value = module.wandb.bucket_name
   }


2. Deploy W&B

   To deploy W&B, execute the following commands:

   terraform init
   terraform apply -var-file=terraform.tfvars


Deployment with REDIS Cache

Another deployment option uses Redis to cache the SQL queries and speedup the application response when loading the metrics for the experiments.

You need to add the option create_redis = true to the same main.tf file specified in the recommended Deployment option section to enable the cache.

[...]

module "wandb" {
  source  = "wandb/wandb/google"
  version = "~> 1.0"

  namespace    = var.namespace
  license      = var.license
  domain_name  = var.domain_name
  subdomain    = var.subdomain
  allowed_inbound_cidrs = ["*"]
  #Enable Redis
  create_redis = true

}
[...]

Deployment with External Queue

Deployment option 3 consists of enabling the external message broker. This is optional because the W&B brings embedded a broker. This option doesn’t bring a performance improvement.

The GCP resource that provides the message broker is the Pub/Sub, and to enable it, you will need to add the option use_internal_queue = false to the same main.tf specified in the recommended Deployment option section

[...]

module "wandb" {
  source  = "wandb/wandb/google"
  version = "~> 1.0"

  namespace          = var.namespace
  license            = var.license
  domain_name        = var.domain_name
  subdomain          = var.subdomain
  allowed_inbound_cidrs = ["*"]
  #Create and use Pub/Sub
  use_internal_queue = false

}

[...]

Other deployment options

You can combine all three deployment options adding all configurations to the same file. The Terraform Module provides several options that can be combined along with the standard options and the minimal configuration found in Deployment - Recommended

Manual configuration

To use a GCP Storage bucket as a file storage backend for W&B, you will need to create a:

• PubSub Topic and Subscription
• Storage Bucket
• PubSub Notification

Create PubSub Topic and Subscription

Follow the procedure below to create a PubSub topic and subscription:

1. Navigate to the Pub/Sub service within the GCP Console
2. Select Create Topic and provide a name for your topic.
3. At the bottom of the page, select Create subscription. Ensure Delivery Type is set to Pull.
4. Click Create.

Make sure the service account or account that your instance is running has the pubsub.admin role on this subscription. For details, see https://cloud.google.com/pubsub/docs/access-control#console.

Create Storage Bucket

1. Navigate to the Cloud Storage Buckets page.
2. Select Create bucket and provide a name for your bucket. Ensure you choose a Standard storage class.

Ensure that the service account or account that your instance is running has both:

• access to the bucket you created in the previous step
• storage.objectAdmin role on this bucket. For details, see https://cloud.google.com/storage/docs/access-control/using-iam-permissions#bucket-add

3. Enable CORS access. This can only be done using the command line. First, create a JSON file with the following CORS configuration.

cors:
- maxAgeSeconds: 3600
  method:
   - GET
   - PUT
     origin:
   - '<YOUR_W&B_SERVER_HOST>'
     responseHeader:
   - Content-Type

Note that the scheme, host, and port of the values for the origin must match exactly.

4. Make sure you have gcloud installed, and logged into the correct GCP Project.
5. Next, run the following:

gcloud storage buckets update gs://<BUCKET_NAME> --cors-file=<CORS_CONFIG_FILE>

Create PubSub Notification

Follow the procedure below in your command line to create a notification stream from the Storage Bucket to the Pub/Sub topic.

1. Log into your GCP Project.
2. Run the following in your terminal:

gcloud pubsub topics list  # list names of topics for reference
gcloud storage ls          # list names of buckets for reference

# create bucket notification
gcloud storage buckets notifications create gs://<BUCKET_NAME> --topic=<TOPIC_NAME>

Further reference is available on the Cloud Storage website.

Configure W&B server

1. Finally, navigate to the W&B System Connections page at http(s)://YOUR-W&B-SERVER-HOST/console/settings/system.
2. Select the provider Google Cloud Storage (gcs),
3. Provide the name of the GCS bucket

4. Press Update settings to apply the new settings.

Upgrade W&B Server

Follow the steps outlined here to update W&B:

1. Add wandb_version to your configuration in your wandb_app module. Provide the version of W&B you want to upgrade to. For example, the following line specifies W&B version 0.48.1:

module "wandb_app" {
    source  = "wandb/wandb/kubernetes"
    version = "~>5.0"

    license       = var.license
    wandb_version = "0.58.1"

2. After you update your configuration, complete the steps described in the Deployment option section.

1.3.3.3 - Deploy W&B Platform on Azure

If you’ve determined to self-managed W&B Server, W&B recommends using the W&B Server Azure Terraform Module to deploy the platform on Azure.

The module documentation is extensive and contains all available options that can be used. We will cover some deployment options in this document.

Before you start, we recommend you choose one of the remote backends available for Terraform to store the State File.

The State File is the necessary resource to roll out upgrades or make changes in your deployment without recreating all components.

The Terraform Module will deploy the following mandatory components:

• Azure Resource Group
• Azure Virtual Network (VPC)
• Azure MySQL Fliexible Server
• Azure Storage Account & Blob Storage
• Azure Kubernetes Service
• Azure Application Gateway

Other deployment options can also include the following optional components:

• Azure Cache for Redis
• Azure Event Grid

Pre-requisite permissions

The simplest way to get the AzureRM provider configured is via Azure CLI but the incase of automation using Azure Service Principal can also be useful. Regardless the authentication method used, the account that will run the Terraform needs to be able to create all components described in the Introduction.

General steps

The steps on this topic are common for any deployment option covered by this documentation.

1. Prepare the development environment.

• Install Terraform
• We recommend creating a Git repository with the code that will be used, but you can keep your files locally.

2. Create the terraform.tfvars file The tvfars file content can be customized according to the installation type, but the minimum recommended will look like the example below.

    namespace     = "wandb"
    wandb_license = "xxxxxxxxxxyyyyyyyyyyyzzzzzzz"
    subdomain     = "wandb-aws"
    domain_name   = "wandb.ml"
    location      = "westeurope"


   The variables defined here need to be decided before the deployment because. The namespace variable will be a string that will prefix all resources created by Terraform.

   The combination of subdomain and domain will form the FQDN that W&B will be configured. In the example above, the W&B FQDN will be wandb-aws.wandb.ml and the DNS zone_id where the FQDN record will be created.

3. Create the file versions.tf This file will contain the Terraform and Terraform provider versions required to deploy W&B in AWS

terraform {
  required_version = "~> 1.3"

  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~> 3.17"
    }
  }
}

Refer to the Terraform Official Documentation to configure the AWS provider.

Optionally, but highly recommended, you can add the remote backend configuration mentioned at the beginning of this documentation.

4. Create the file variables.tf. For every option configured in the terraform.tfvars Terraform requires a correspondent variable declaration.

  variable "namespace" {
    type        = string
    description = "String used for prefix resources."
  }

  variable "location" {
    type        = string
    description = "Azure Resource Group location"
  }

  variable "domain_name" {
    type        = string
    description = "Domain for accessing the Weights & Biases UI."
  }

  variable "subdomain" {
    type        = string
    default     = null
    description = "Subdomain for accessing the Weights & Biases UI. Default creates record at Route53 Route."
  }

  variable "license" {
    type        = string
    description = "Your wandb/local license"
  }

Recommended deployment

This is the most straightforward deployment option configuration that will create all Mandatory components and install in the Kubernetes Cluster the latest version of W&B.

1. Create the main.tf In the same directory where you created the files in the General Steps, create a file main.tf with the following content:

provider "azurerm" {
  features {}
}

provider "kubernetes" {
  host                   = module.wandb.cluster_host
  cluster_ca_certificate = base64decode(module.wandb.cluster_ca_certificate)
  client_key             = base64decode(module.wandb.cluster_client_key)
  client_certificate     = base64decode(module.wandb.cluster_client_certificate)
}

provider "helm" {
  kubernetes {
    host                   = module.wandb.cluster_host
    cluster_ca_certificate = base64decode(module.wandb.cluster_ca_certificate)
    client_key             = base64decode(module.wandb.cluster_client_key)
    client_certificate     = base64decode(module.wandb.cluster_client_certificate)
  }
}

# Spin up all required services
module "wandb" {
  source  = "wandb/wandb/azurerm"
  version = "~> 1.2"

  namespace   = var.namespace
  location    = var.location
  license     = var.license
  domain_name = var.domain_name
  subdomain   = var.subdomain

  deletion_protection = false

  tags = {
    "Example" : "PublicDns"
  }
}

output "address" {
  value = module.wandb.address
}

output "url" {
  value = module.wandb.url
}

2. Deploy to W&B To deploy W&B, execute the following commands:

   terraform init
   terraform apply -var-file=terraform.tfvars


Deployment with REDIS Cache

Another deployment option uses Redis to cache the SQL queries and speed up the application response when loading the metrics for the experiments.

You must add the option create_redis = true to the same main.tf file that you used in recommended deployment to enable the cache.

# Spin up all required services
module "wandb" {
  source  = "wandb/wandb/azurerm"
  version = "~> 1.2"


  namespace   = var.namespace
  location    = var.location
  license     = var.license
  domain_name = var.domain_name
  subdomain   = var.subdomain

  create_redis       = true # Create Redis
  [...]

Deployment with External Queue

Deployment option 3 consists of enabling the external message broker. This is optional because the W&B brings embedded a broker. This option doesn’t bring a performance improvement.

The Azure resource that provides the message broker is the Azure Event Grid, and to enable it, you must add the option use_internal_queue = false to the same main.tf that you used in the recommended deployment

# Spin up all required services
module "wandb" {
  source  = "wandb/wandb/azurerm"
  version = "~> 1.2"


  namespace   = var.namespace
  location    = var.location
  license     = var.license
  domain_name = var.domain_name
  subdomain   = var.subdomain

  use_internal_queue       = false # Enable Azure Event Grid
  [...]
}

Other deployment options

You can combine all three deployment options adding all configurations to the same file. The Terraform Module provides several options that you can combine along with the standard options and the minimal configuration found in recommended deployment

1.3.3.4 - Reference Architecture

This page describes a reference architecture for a Weights & Biases deployment and outlines the recommended infrastructure and resources to support a production deployment of the platform.

Depending on your chosen deployment environment for Weights & Biases (W&B), various services can help to enhance the resiliency of your deployment.

For instance, major cloud providers offer robust managed database services which help to reduce the complexity of database configuration, maintenance, high availability, and resilience.

This reference architecture addresses some common deployment scenarios and shows how you can integrate your W&B deployment with cloud vendor services for optimal performance and reliability.

Before you start

Running any application in production comes with its own set of challenges, and W&B is no exception. While we aim to streamline the process, certain complexities may arise depending on your unique architecture and design decisions. Typically, managing a production deployment involves overseeing various components, including hardware, operating systems, networking, storage, security, the W&B platform itself, and other dependencies. This responsibility extends to both the initial setup of the environment and its ongoing maintenance.

Consider carefully whether a self-managed approach with W&B is suitable for your team and specific requirements.

A strong understanding of how to run and maintain production-grade application is an important prerequisite before you deploy self-managed W&B. If your team needs assistance, our Professional Services team and partners offer support for implementation and optimization.

To learn more about managed solutions for running W&B instead of managing it yourself, refer to W&B Multi-tenant Cloud and W&B Dedicated Cloud.

Infrastructure

Application layer

The application layer consists of a multi-node Kubernetes cluster, with resilience against node failures. The Kubernetes cluster runs and maintains W&B’s pods.

Storage layer

The storage layer consists of a MySQL database and object storage. The MySQL database stores metadata and the object storage stores artifacts such as models and datasets.

Infrastructure requirements

Kubernetes

The W&B Server application is deployed as a Kubernetes Operator that deploys multiple Pods. For this reason, W&B requires a Kubernetes cluster with:

• A fully configured and functioning Ingress controller
• The capability to provision Persistent Volumes.

MySQL

W&B stores metadata in a MySQL database. The database’s performance and storage requirements depend on the shapes of the model parameters and related metadata. For example, the database grows in size as you track more training runs, and load on the database increases based on queries in run tables, user workspaces, and reports.

Consider the following when you deploy a self-managed MySQL database:

• Backups. You should periodically back up the database to a separate facility. W&B recommends daily backups with at least 1 week of retention.
• Performance. The disk the server is running on should be fast. W&B recommends running the database on an SSD or accelerated NAS.
• Monitoring. The database should be monitored for load. If CPU usage is sustained at > 40% of the system for more than 5 minutes it is likely a good indication the server is resource starved.
• Availability. Depending on your availability and durability requirements you might want to configure a hot standby on a separate machine that streams all updates in realtime from the primary server and can be used to failover to in the event that the primary server crashes or become corrupted.

Object storage

W&B requires object storage with Pre-signed URL and CORS support, deployed in Amazon S3, Azure Cloud Storage, Google Cloud Storage, or a storage service compatible with Amazon S3.service)

Versions

• Kubernetes: at least version 1.29.
• MySQL: at least 8.0.

Networking

In a deployment connected a public or private network, egress to the following endpoints is required during installation and during runtime: * https://deploy.wandb.ai * https://charts.wandb.ai * https://docker.io * https://quay.io * https://gcr.io

Access to W&B and to the object storage is required for the training infrastructure and for each system that tracks the needs of experiments.

DNS

The fully qualified domain name (FQDN) of the W&B deployment must resolve to the IP address of the ingress/load balancer using an A record.

SSL/TLS

W&B requires a valid signed SSL/TLS certificate for secure communication between clients and the server. SSL/TLS termination must occur on the ingress/load balancer. The W&B Server application does not terminate SSL or TLS connections.

Please note: W&B does not recommend the use self-signed certificates and custom CAs.

Supported CPU architectures

W&B runs on the Intel (x86) CPU architecture. ARM is not supported.

Infrastructure provisioning

Terraform is the recommended way to deploy W&B for production. Using Terraform, you define the required resources, their references to other resources, and their dependencies. W&B provides Terraform modules for the major cloud providers. For details, refer to Deploy W&B Server within self managed cloud accounts.

Sizing

Use the following general guidelines as a starting point when planning a deployment. W&B recommends that you monitor all components of a new deployment closely and that you make adjustments based on observed usage patterns. Continue to monitor production deployments over time and make adjustments as needed to maintain optimal performance.

Models only

Kubernetes

Numbers are per Kubernetes worker node.

MySQL

Numbers are per MySQL node.

Weave only

Kubernetes

Numbers are per Kubernetes worker node.

MySQL

Numbers are per MySQL node.

Models and Weave

Kubernetes

Numbers are per Kubernetes worker node.

MySQL

Numbers are per MySQL node.

Cloud provider instance recommendations

Services

Machine types

These recommendations apply to each node of a self-managed deployment of W&B in cloud infrastructure.

AWS

GCP

Azure

1.3.4 - Deploy W&B Platform On-premises

Reach out to the W&B Sales Team for related question: contact@wandb.com.

Infrastructure guidelines

Before you start deploying W&B, refer to the reference architecture, especially the infrastructure requirements.

Application server

W&B recommends deploying W&B Server into its own namespace and a two availability zone node group with the following specifications to provide the best performance, reliability, and availability:

This ensures that W&B Server has sufficient disk space to process the application data and store temporary logs before they are externalized.

It also ensures fast and reliable data transfer, the necessary processing power and memory for smooth operation, and that W&B will not be affected by any noisy neighbors.

It is important to keep in mind that these specifications are minimum requirements, and actual resource needs may vary depending on the specific usage and workload of the W&B application. Monitoring the resource usage and performance of the application is critical to ensure that it operates optimally and to make adjustments as necessary.

Database server

W&B recommends a MySQL 8 database as a metadata store. The shape of the model parameters and related metadata impact the performance of the database. The database size grows as the ML practitioners track more training runs, and incurs read heavy load when queries are executed in run tables, users workspaces, and reports.

To ensure optimal performance W&B recommends deploying the W&B database on to a server with the following starting specs:

Again, W&B recommends monitoring the resource usage and performance of the database to ensure that it operates optimally and to make adjustments as necessary.

Additionally, W&B recommends the following parameter overrides to tune the DB for MySQL 8.

Object storage

W&B is compatible with an object storage that supports S3 API interface, Signed URLs and CORS. W&B recommends specifying the storage array to the current needs of your practitioners and to capacity plan on a regular cadence.

More details on object store configuration can be found in the how-to section.

Some tested and working providers:

• MinIO
• Ceph
• NetApp
• Pure Storage

Secure Storage Connector

The Secure Storage Connector is not available for teams at this time for bare metal deployments.

MySQL database

There are a number of enterprise services that make operating a scalable MySQL database simpler. W&B recommends looking into one of the following solutions:

https://www.percona.com/software/mysql-database/percona-server

https://github.com/mysql/mysql-operator

Satisfy the conditions below if you run W&B Server MySQL 8.0 or when you upgrade from MySQL 5.7 to 8.0:

binlog_format = 'ROW'
innodb_online_alter_log_max_size = 268435456
sync_binlog = 1
innodb_flush_log_at_trx_commit = 1
binlog_row_image = 'MINIMAL'

Due to some changes in the way that MySQL 8.0 handles sort_buffer_size, you might need to update the sort_buffer_size parameter from its default value of 262144. The recommendation is to set the value to 67108864 (64MiB) to ensure that MySQL works efficiently with W&B. MySQL supports this configuration starting with v8.0.28.

Database considerations

Create a database and a user with the following SQL query. Replace SOME_PASSWORD with password of your choice:

CREATE USER 'wandb_local'@'%' IDENTIFIED BY 'SOME_PASSWORD';
CREATE DATABASE wandb_local CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;
GRANT ALL ON wandb_local.* TO 'wandb_local'@'%' WITH GRANT OPTION;

Parameter group configuration

Ensure that the following parameter groups are set to tune the database performance:

binlog_format = 'ROW'
innodb_online_alter_log_max_size = 268435456
sync_binlog = 1
innodb_flush_log_at_trx_commit = 1
binlog_row_image = 'MINIMAL'
sort_buffer_size = 67108864

Object storage

The object store can be externally hosted on a Minio cluster, or any Amazon S3 compatible object store that has support for signed URLs. Run the following script to check if your object store supports signed URLs.

Additionally, the following CORS policy needs to be applied to the object store.

<?xml version="1.0" encoding="UTF-8"?>
<CORSConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
<CORSRule>
    <AllowedOrigin>http://YOUR-W&B-SERVER-IP</AllowedOrigin>
    <AllowedMethod>GET</AllowedMethod>
    <AllowedMethod>PUT</AllowedMethod>
    <AllowedMethod>HEAD</AllowedMethod>
    <AllowedHeader>*</AllowedHeader>
</CORSRule>
</CORSConfiguration>

You can specify your credentials in a connection string when you connect to an Amazon S3 compatible object store. For example, you can specify the following:

s3://$ACCESS_KEY:$SECRET_KEY@$HOST/$BUCKET_NAME

You can optionally tell W&B to only connect over TLS if you configure a trusted SSL certificate for your object store. To do so, add the tls query parameter to the URL. For example, the following URL example demonstrates how to add the TLS query parameter to an Amazon S3 URI:

s3://$ACCESS_KEY:$SECRET_KEY@$HOST/$BUCKET_NAME?tls=true

Set BUCKET_QUEUE to internal:// if you use third-party object stores. This tells the W&B server to manage all object notifications internally instead of depending on an external SQS queue or equivalent.

The most important things to consider when running your own object store are:

1. Storage capacity and performance. It’s fine to use magnetic disks, but you should be monitoring the capacity of these disks. Average W&B usage results in 10’s to 100’s of Gigabytes. Heavy usage could result in Petabytes of storage consumption.
2. Fault tolerance. At a minimum, the physical disk storing the objects should be on a RAID array. If you use minio, consider running it in distributed mode.
3. Availability. Monitoring should be configured to ensure the storage is available.

There are many enterprise alternatives to running your own object storage service such as:

1. https://aws.amazon.com/s3/outposts/
2. https://www.netapp.com/data-storage/storagegrid/

MinIO set up

If you use minio, you can run the following commands to create a bucket.

mc config host add local http://$MINIO_HOST:$MINIO_PORT "$MINIO_ACCESS_KEY" "$MINIO_SECRET_KEY" --api s3v4
mc mb --region=us-east1 local/local-files

Deploy W&B Server application to Kubernetes

The recommended installation method is with the official W&B Helm chart. Follow this section to deploy the W&B Server application.

OpenShift

W&B supports operating from within an OpenShift Kubernetes cluster.

Run the container as an un-privileged user

By default, containers use a $UID of 999. Specify $UID >= 100000 and a $GID of 0 if your orchestrator requires the container run with a non-root user.

An example security context for Kubernetes looks similar to the following:

spec:
  securityContext:
    runAsUser: 100000
    runAsGroup: 0

Networking

Load balancer

Run a load balancer that stop network requests at the appropriate network boundary.

Common load balancers include:

1. Nginx Ingress
2. Istio
3. Caddy
4. Cloudflare
5. Apache
6. HAProxy

Ensure that all machines used to execute machine learning payloads, and the devices used to access the service through web browsers, can communicate to this endpoint.

SSL / TLS

W&B Server does not stop SSL. If your security policies require SSL communication within your trusted networks consider using a tool like Istio and side car containers. The load balancer itself should terminate SSL with a valid certificate. Using self-signed certificates is not supported and will cause a number of challenges for users. If possible using a service like Let’s Encrypt is a great way to provided trusted certificates to your load balancer. Services like Caddy and Cloudflare manage SSL for you.

Example nginx configuration

The following is an example configuration using nginx as a reverse proxy.

events {}
http {
    # If we receive X-Forwarded-Proto, pass it through; otherwise, pass along the
    # scheme used to connect to this server
    map $http_x_forwarded_proto $proxy_x_forwarded_proto {
        default $http_x_forwarded_proto;
        ''      $scheme;
    }

    # Also, in the above case, force HTTPS
    map $http_x_forwarded_proto $sts {
        default '';
        "https" "max-age=31536000; includeSubDomains";
    }

    # If we receive X-Forwarded-Host, pass it though; otherwise, pass along $http_host
    map $http_x_forwarded_host $proxy_x_forwarded_host {
        default $http_x_forwarded_host;
        ''      $http_host;
    }

    # If we receive X-Forwarded-Port, pass it through; otherwise, pass along the
    # server port the client connected to
    map $http_x_forwarded_port $proxy_x_forwarded_port {
        default $http_x_forwarded_port;
        ''      $server_port;
    }

    # If we receive Upgrade, set Connection to "upgrade"; otherwise, delete any
    # Connection header that may have been passed to this server
    map $http_upgrade $proxy_connection {
        default upgrade;
        '' close;
    }

    server {
        listen 443 ssl;
        server_name         www.example.com;
        ssl_certificate     www.example.com.crt;
        ssl_certificate_key www.example.com.key;

        proxy_http_version 1.1;
        proxy_buffering off;
        proxy_set_header Host $http_host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $proxy_connection;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $proxy_x_forwarded_proto;
        proxy_set_header X-Forwarded-Host $proxy_x_forwarded_host;

        location / {
            proxy_pass  http://$YOUR_UPSTREAM_SERVER_IP:8080/;
        }

        keepalive_timeout 10;
    }
}

Verify your installation

Very your W&B Server is configured properly. Run the following commands in your terminal:

pip install wandb
wandb login --host=https://YOUR_DNS_DOMAIN
wandb verify

Check log files to view any errors the W&B Server hits at startup. Run the following commands:

• Docker
• Kubernetes

docker logs wandb-local

kubectl get pods
kubectl logs wandb-XXXXX-XXXXX

Contact W&B Support if you encounter errors.

1.3.5 - Update W&B license and version

Update your W&B Server Version and License with the same method you installed W&B Server with. The following table lists how to update your license and version based on different deployment methods:

Update with Terraform

Update your license and version with Terraform. The proceeding table lists W&B managed Terraform modules based cloud platform.

1. First, navigate to the W&B maintained Terraform module for your appropriate cloud provider. See the preceding table to find the appropriate Terraform module based on your cloud provider.

2. Within your Terraform configuration, update wandb_version and license in your Terraform wandb_app module configuration:

   module "wandb_app" {
       source  = "wandb/wandb/<cloud-specific-module>"
       version = "new_version"
       license       = "new_license_key" # Your new license key
       wandb_version = "new_wandb_version" # Desired W&B version
       ...
   }


3. Apply the Terraform configuration with terraform plan and terraform apply.

   terraform init
   terraform apply


4. (Optional) If you use a terraform.tfvars or other .tfvars file.

   Update or create a terraform.tfvars file with the new W&B version and license key.

   terraform plan -var-file="terraform.tfvars"


   Apply the configuration. In your Terraform workspace directory execute:

   terraform apply -var-file="terraform.tfvars"


Update with Helm

Update W&B with spec

1. Specify a new version by modifying the image.tag and/or license values in your Helm chart *.yaml configuration file:

   license: 'new_license'
   image:
     repository: wandb/local
     tag: 'new_version'


2. Execute the Helm upgrade with the following command:

   helm repo update
   helm upgrade --namespace=wandb --create-namespace \
     --install wandb wandb/wandb --version ${chart_version} \
     -f ${wandb_install_spec.yaml}


Update license and version directly

1. Set the new license key and image tag as environment variables:

   export LICENSE='new_license'
   export TAG='new_version'


2. Upgrade your Helm release with the command below, merging the new values with the existing configuration:

   helm repo update
   helm upgrade --namespace=wandb --create-namespace \
     --install wandb wandb/wandb --version ${chart_version} \
     --reuse-values --set license=$LICENSE --set image.tag=$TAG


For more details, see the upgrade guide in the public repository.

Update with admin UI

This method is only works for updating licenses that are not set with an environment variable in the W&B server container, typically in self-hosted Docker installations.

1. Obtain a new license from the W&B Deployment Page, ensuring it matches the correct organization and deployment ID for the deployment you are looking to upgrade.
2. Access the W&B Admin UI at <host-url>/system-settings.
3. Navigate to the license management section.
4. Enter the new license key and save your changes.

2 - Identity and access management (IAM)

W&B Platform has three IAM scopes within W&B: Organizations, Teams, and Projects.

Organization

An Organization is the root scope in your W&B account or instance. All actions in your account or instance take place within the context of that root scope, including managing users, managing teams, managing projects within teams, tracking usage and more.

If you are using Multi-tenant Cloud, you may have more than one organization where each may correspond to a business unit, a personal user, a joint partnership with another business and more.

If you are using Dedicated Cloud or a Self-managed instance, it corresponds to one organization. Your company may have more than one of Dedicated Cloud or Self-managed instances to map to different business units or departments, though that is strictly an optional way to manage AI practioners across your businesses or departments.

For more information, see Manage orrganizations.

Team

A Team is a subscope within a organization, that may map to a business unit / function, department, or a project team in your company. You may have more than one team in your organization depending on your deployment type and pricing plan.

AI projects are organized within the context of a team. The access control within a team is governed by team admins, who may or may not be admins at the parent organization level.

For more information, see Add and manage teams.

Project

A Project is a subscope within a team, that maps to an actual AI project with specific intended outcomes. You may have more than one project within a team. Each project has a visibility mode which determines who can access it.

Every project is comprised of Workspaces and Reports, and is linked to relevant Artifacts, Sweeps, Launch Jobs and Automations.

2.1 - Authentication

2.1.1 - Configure SSO with LDAP

Authenticate your credentials with the W&B Server LDAP server. The following guide explains how to configure the settings for W&B Server. It covers mandatory and optional configurations, as well as instructions for configuring the LDAP connection from systems settings UI. it also provides information on the different inputs of the LDAP configuration, such as the address, base distinguished name, and attributes. You can specify these attributes from the W&B App UI or using environment variables. You can setup either an anonymous bind, or bind with an administrator DN and Password.

Configure LDAP connection

• W&B App
• Environment variable

Configuration parameters

The following table lists and describes required and optional LDAP configurations.

2.1.2 - Configure SSO with OIDC

W&B Server’s support for OpenID Connect (OIDC) compatible identity providers allows for management of user identities and group memberships through external identity providers like Okta, Keycloak, Auth0, Google, and Entra.

OpenID Connect (OIDC)

W&B Server supports the following OIDC authentication flows for integrating with external Identity Providers (IdPs).

1. Implicit Flow with Form Post
2. Authorization Code Flow with Proof Key for Code Exchange (PKCE)

These flows authenticate users and provide W&B Server with the necessary identity information (in the form of ID tokens) to manage access control.

The ID token is a JWT that contains the user’s identity information, such as their name, username, email, and group memberships. W&B Server uses this token to authenticate the user and map them to appropriate roles or groups in the system.

In the context of W&B Server, access tokens authorize requests to APIs on behalf of the user, but since W&B Server’s primary concern is user authentication and identity, it only requires the ID token.

You can use environment variables to configure IAM options for your Dedicated cloud or Self-managed instance.

To assist with configuring Identity Providers for Dedicated cloud or Self-managed W&B Server installations, follow these guidelines to follow for various IdPs. If you’re using the SaaS version of W&B, reach out to support@wandb.com for assistance in configuring an Auth0 tenant for your organization.

• Cognito
• Okta
• Entra

Set up SSO on the W&B Server

To set up SSO, you need administrator privileges and the following information:

• OIDC Client ID
• OIDC Auth method (implicit or pkce)
• OIDC Issuer URL
• OIDC Client Secret (optional; depends on how you have setup your IdP)

You can configure SSO using either the W&B Server UI or by passing environment variables to the wandb/local pod. The environment variables take precedence over UI.

• System Console
• System settings

The System Console is the successor to the System Settings page. It is available with the W&B Kubernetes Operator based deployment.

1. Refer to Access the W&B Management Console.

2. Navigate to Settings, then Authentication. Select OIDC in the Type dropdown.

3. Enter the values.

4. Click on Save.

5. Log out and then log back in, this time using the IdP login screen.

1. Sign in to your Weights&Biases instance.

2. Navigate to the W&B App.



3. From the dropdown, select System Settings:



4. Enter your Issuer, Client ID, and Authentication Method.

5. Select Update settings.

Security Assertion Markup Language (SAML)

W&B Server does not support SAML.

2.1.3 - Use federated identities with SDK

Use identity federation to sign in using your organizational credentials through W&B SDK. If your W&B organization admin has configured SSO for your organization, then you already use your organizational credentials to sign-in to the W&B app UI. In that sense, identity federation is like SSO for W&B SDK, but by using JSON Web Tokens (JWTs) directly. You can use identity federation as an alternative to API keys.

RFC 7523 forms the underlying basis for identity federation with SDK.

JWT issuer setup

As a first step, an organization admin must set up a federation between your W&B organization and a publicly accessible JWT issuer.

• Go to the Settings tab in your organization dashboard
• In the Authentication option, press Set up JWT Issuer
• Add the JWT issuer URL in the text box and press Create

W&B will automatically look for a OIDC discovery document at the path ${ISSUER_URL}/.well-known/oidc-configuration, and try to find the JSON Web Key Set (JWKS) at a relevant URL in the discovery document. The JWKS is used for real-time validation of the JWTs to ensure that those have been issued by the relevant identity provider.

Using the JWT to access W&B

Once a JWT issuer has been setup for your W&B organization, users can start accessing the relevant W&B projects using JWTs issued by that identity provider. The mechanism for using JWTs is as follows:

• You must sign-in to the identity provider using one of the mechanisms available in your organization. Some providers can be accessed in an automated manner using an API or SDK, while some can only be accessed using a relevant UI. Reach out to your W&B organization admin or the owner of the JWT issuer for details.
• Once you’ve retrieved the JWT after signing in to your identity provider, store it in a file at a secure location and configure the absolute file path in an environment variable WANDB_IDENTITY_TOKEN_FILE.
• Access your W&B project using the W&B SDK or CLI. The SDK or CLI should automatically detect the JWT and exchange it for a W&B access token after the JWT has been successfully validated. The W&B access token is used to access the relevant APIs for enabling your AI workflows, that is, to log runs, metrics, artifacts and so forth. The access token is by default stored at the path ~/.config/wandb/credentials.json. You can change that path by specifying the environment variable WANDB_CREDENTIALS_FILE.

JWT validation

As part of the workflow to exchange the JWT for a W&B access token and then access a project, the JWT undergoes following validations:

• The JWT signature is verified using the JWKS at the W&B organization level. This is the first line of defense, and if this fails, that means there’s a problem with your JWKS or how your JWT is signed.
• The iss claim in the JWT should be equal to the issuer URL configured at the organization level.
• The sub claim in the JWT should be equal to the user’s email address as configured in the W&B organization.
• The aud claim in the JWT should be equal to the name of the W&B organization which houses the project that you are accessing as part of your AI workflow. In case of Dedicated Cloud or Self-managed instances, you could configure an instance-level environment variable SKIP_AUDIENCE_VALIDATION to true to skip validation of the audience claim, or use wandb as the audience.
• The exp claim in the JWT is checked to see if the token is valid or has expired and needs to be refreshed.

External service accounts

W&B has supported built-in service accounts with long-lived API keys for long. With the identity federation capability for SDK and CLI, you can also bring external service accounts that could use JWTs for authentication, though as long as those are issued by the same issuer which is configured at the organization level. A team admin can configure external service accounts within the scope of a team, like the built-in service accounts.

To configure an external service account:

• Go to the Service Accounts tab for your team
• Press New service account
• Provide a name for the service account, select Federated Identity as the Authentication Method, provide a Subject, and press Create

The sub claim in the external service account’s JWT should be same as what the team admin configures as its subject in the team-level Service Accounts tab. That claim is verified as part of JWT validation. The aud claim requirement is similar to that for human user JWTs.

When using an external service account’s JWT to access W&B, it’s typically easier to automate the workflow to generate the initial JWT and continuously refresh it. If you would like to attribute the runs logged using an external service account to a human user, you can configure the environment variables WANDB_USERNAME or WANDB_USER_EMAIL for your AI workflow, similar to how it’s done for the built-in service accounts.

2.1.4 - Use service accounts to automate workflows

A service account represents a non-human or machine user that can automatically perform common tasks across projects within a team or across teams.

• An org admin can create a service account at the scope of the organization.
• A team admin can create a service account at the scope of that team.

A service account’s API key allows the caller to read from or write to projects within the service account’s scope.

Service accounts allow for centralized management of workflows by multiple users or teams, to automate experiment tracking for W&B Models or to log traces for W&B Weave. You have the option to associate a human user’s identity with a workflow managed by a service account, by using either of the environment variables WANDB_USERNAME or WANDB_USER_EMAIL.

Organization-scoped service accounts

Service accounts scoped to an organization have permissions to read and write in all projects in the organization, regardless of the team, with the exception of restricted projects. Before an organization-scoped service account can access a restricted project, an admin of that project must explicitly add the service account to the project.

An organization admin can obtain the API key for an organization-scoped service account from the Service Accounts tab of the organization or account dashboard.

To create a new organization-scoped service account:

• Click New service account button in the Service Accounts tab of your organization dashboard.
• Enter a Name.
• Select a default team for the service account.
• Click Create.
• Next to the newly created service account, click Copy API key.
• Store the copied API key in a secret manager or another secure but accessible location.

Team-scoped service accounts

A team-scoped service account can read and write in all projects within its team, except to restricted projects in that team. Before a team-scoped service account can access a restricted project, an admin of that project must explicitly add the service account to the project.

As a team admin, you can get the API key for a team-scoped service account in your team at <WANDB_HOST_URL>/<your-team-name>/service-accounts. Alternatively you can go to the Team settings for your team and then refer to the Service Accounts tab.

To create a new team scoped service account for your team:

• Click New service account button in the Service Accounts tab of your team.
• Enter a Name.
• Select Generate API key (Built-in) as the authentication method.
• Click Create.
• Next to the newly created service account, click Copy API key.
• Store the copied API key in a secret manager or another secure but accessible location.

If you do not configure a team in your model training or generative AI app environment that uses a team-scoped service account, the model runs or weave traces log to the named project within the service account’s parent team. In such a scenario, user attribution using the WANDB_USERNAME or WANDB_USER_EMAIL variables do not work unless the referenced user is part of the service account’s parent team.

External service accounts

In addition to Built-in service accounts, W&B also supports team-scoped External service accounts with the W&B SDK and CLI using Identity federation with identity providers (IdPs) that can issue JSON Web Tokens (JWTs).

2.2 - Access management

Manage users and teams within an organization

The first user to sign up to W&B with a unique organization domain is assigned as that organization’s instance administrator role. The organization administrator assigns specific users team administrator roles.

A team administrator is a user in organization that has administrative permissions within a team.

The organization administrator can access and use an organization’s account settings at https://wandb.ai/account-settings/ to invite users, assign or update a user’s role, create teams, remove users from your organization, assign the billing administrator, and more. See Add and manage users for more information.

Once an organization administrator creates a team, the instance administrator or ateam administrator can:

• Invite users to that team or remove users from the team.
• Assign or update a team member’s role.
• Automatically add new users to a team when they join your organization.

Both the organization administrator and the team administrator use team dashboards at https://wandb.ai/<your-team-name> to manage teams. For more information on what organization administrators and team administrators can do, see Add and manage teams.

Limit visibility to specific projects

Define the scope of a W&B project to limit who can view, edit, and submit W&B runs to it. Limiting who can view a project is particularly useful if a team works with sensitive or confidential data.

An organization admin, team admin, or the owner of a project can both set and edit a project’s visibility.

For more information, see Project visibility.

2.2.1 - Manage your organization

As an administrator of an organization you can manage individual users within your organization and manage teams.

As a team administrator you can manage teams.

If you are looking to simplify user management in your organization, refer to Automate user and team management.

Change the name of your organization

1. Navigate to https://wandb.ai/home.
2. In the upper right corner of the page, select the User menu dropdown. Within the Account section of the dropdown, select Settings.
3. Within the Settings tab, select General.
4. Select the Change name button.
5. Within the modal that appears, provide a new name for your organization and select the Save name button.

Add and manage users

As an administrator, use your organization’s dashboard to:

• Invite or remove users.
• Assign or update a user’s role.
• Assign the billing administrator.

There are several ways an organization administrator can add users to an organization:

1. Member-by-invite
2. Auto provisioning with SSO
3. Domain capture

Seats and pricing

The proceeding table summarizes how seats work for Models and Weave:

Invite a user

Administrators can invite users to their organization, as well as specific teams within the organization.

• Multi-tenant SaaS Cloud
• Dedicated or Self-managed

Auto provision users

A W&B user with matching email domain can sign in to your W&B Organization with Single Sign-On (SSO) if you configure SSO and your SSO provider permits it. SSO is available for all Enterprise licenses.

W&B assigned auto-provisioning users “Member” roles by default. You can change the role of auto-provisioned users at any time.

Auto-provisioning users with SSO is on by default for Dedicated cloud instances and Self-managed deployments. You can turn off auto provisioning. Turning auto provisioning off enables you to selectively add specific users to your W&B organization.

The proceeding tabs describe how to turn off SSO based on deployment type:

• Dedicated cloud
• Self-managed

Domain capture

Domain capture helps your employees join the your companies organization to ensure new users do not create assets outside of your company jurisdiction.

• Multi-tenant SaaS Cloud
• Dedicated or Self-managed

Assign or update a user’s role

Every member in an Organization has an organization role and seat for both W&B Models and Weave. The type of seat they have determines both their billing status and the actions they can take in each product line.

You initially assign an organization role to a user when you invite them to your organization. You can change any user’s role at a later time.

A user within an organization can have one of the proceeding roles:

To change a user’s role:

1. Navigate to https://wandb.ai/home.
2. In the upper right corner of the page, select the User menu dropdown. From the dropdown, choose Users.
3. Provide the name or email of the user in the search bar.
4. Select a role from the TEAM ROLE dropdown next to the name of the user.

Assign or update a user’s access

A user within an organization has one of the proceeding model seat or weave access types: full, viewer, or no access.

Model seat type and weave access type are defined at the organization level, and inherited by the team. If you want to change a user’s seat type, navigate to the organization settings and follow the proceeding steps:

1. For SaaS users, navigate to your organization’s settings at https://wandb.ai/account-settings/<organization>/settings. Ensure to replace the values enclosed in angle brackets (<>) with your organization name. For other Dedicated and Self-managed deployments, navigate to https://<your-instance>.wandb.io/org/dashboard.
2. Select the Users tab.
3. From the Role dropdown, select the seat type you want to assign to the user.

Remove a user

1. Navigate to https://wandb.ai/home.
2. In the upper right corner of the page, select the User menu dropdown. From the dropdown, choose Users.
3. Provide the name or email of the user in the search bar.
4. Select the ellipses or three dots icon (…) when it appears.
5. From the dropdown, choose Remove member.

Assign the billing administrator

1. Navigate to https://wandb.ai/home.
2. In the upper right corner of the page, select the User menu dropdown. From the dropdown, choose Users.
3. Provide the name or email of the user in the search bar.
4. Under the Billing admin column, choose the user you want to assign as the billing administrator.

Add and manage teams

Use your organization’s dashboard to create and manage teams within your organization. The org administrator or a team administrator can:

• Invite users to a team or remove users from a team.
• Manage a team member’s roles.
• Automate the addition of users to a team when they join your organization.
• Manage team storage with the team’s dashboard at https://wandb.ai/<team-name>.

Create a team

Use your organization’s dashboard to create a team:

1. Navigate to https://wandb.ai/home.
2. Select Create a team to collaborate on the left navigation panel underneath Teams.
3. Provide a name for your team in the Team name field in the modal that appears.
4. Choose a storage type.
5. Select the Create team button.

After you select Create team button, W&B redirects you to a new team page at https://wandb.ai/<team-name>. Where <team-name> consists of the name you provide when you create a team.

Once you have a team, you can add users to that team.

Invite users to a team

Invite users to a team in your organization. Use the team’s dashboard to invite users using their email address or W&B username if they already have a W&B account.

1. Navigate to https://wandb.ai/<team-name>.
2. Select Team settings in the global navigation on the left side of the dashboard.
3. Select the Users tab.
4. Choose on Invite a new user.
5. Within the modal that appears, provide the email of the user in the Email or username field and select the role to assign to that user from the Select a team role dropdown. For more information about roles a user can have in a team, see Team roles.
6. Choose on the Send invite button.

In addition to inviting users manually with email invites, you can automatically add new users to a team if the new user’s email matches the domain of your organization.

Match members to a team organization during sign up

Allow new users within your organization discover Teams within your organization when they sign-up. New users must have a verified email domain that matches your organization’s verified email domain. Verified new users can view a list of verified teams that belong to an organization when they sign up for a W&B account.

An organization administrator must enable domain claiming. To enable domain capture, see the steps described in Domain capture.

Assign or update a team member’s role

1. Select the account type icon next to the name of the team member.
2. From the drop-down, choose the account type you want that team member to posses.

This table lists the roles you can assign to a member of a team:

Remove users from a team

Remove a user from a team using the team’s dashboard. W&B preserves runs created in a team even if the member who created the runs is no longer on that team.

1. Navigate to https://wandb.ai/<team-name>.
2. Select Team settings in the left navigation bar.
3. Select the Users tab.
4. Hover your mouse next to the name of the user you want to delete. Select the ellipses or three dots icon (…) when it appears.
5. From the dropdown, select Remove user.

2.2.2 - Manage access control for projects

Define the scope of a W&B project to limit who can view, edit, and submit W&B runs to it.

You can use a combination of a couple of controls to configure the access level for any project within a W&B team. Visibility scope is the higher-level mechanism. Use that to control which groups of users can view or submit runs in a project. For a project with Team or Restricted visibility scope, you can then use Project level roles to control the level of access that each user has within the project.

Visibility scopes

There are four project visibility scopes you can choose from. In order of most public to most private, they are:

Set visibility scope on a new or existing project

Set a project’s visibility scope when you create a project or when editing it later.

Set visibility scope when you create a new project

1. Navigate to your W&B organization on SaaS Cloud, Dedicated Cloud, or Self-managed instance.
2. Click the Create a new project button in the left hand sidebar’s My projects section. Alternatively, navigate to the Projects tab of your team and click the Create new project button in the upper right hand corner.
3. After selecting the parent team and entering the name of the project, select the desired scope from the Project Visibility dropdown.

Complete the following step if you select Restricted visibility.

4. Provide names of one or more W&B team members in the Invite team members field. Add only those members who are essential to collaborate on the project.

Edit visibility scope of an existing project

1. Navigate to your W&B Project.
2. Select the Overview tab on the left column.
3. Click the Edit Project Details button on the upper right corner.
4. From the Project Visibility dropdown, select the desired scope.

Complete the following step if you select Restricted visibility.

5. Go to the Users tab in the project, and click Add user button to invite specific users to the restricted project.

Other key things to note for restricted scope

• If you want to use a team-level service account in a restricted project, you should invite or add that specifically to the project. Otherwise a team-level service account can not access a restricted project by default.
• You can not move runs from a restricted project, but you can move runs from a non-restricted project to a restricted one.
• You can convert the visibility of a restricted project to only Team scope, irrespective of the team privacy setting Make all future team projects private (public sharing not allowed).
• If the owner of a restricted project is not part of the parent team anymore, the team admin should change the owner to ensure seamless operations in the project.

Project level roles

For the Team or Restricted scoped projects in your team, you can assign a specific role to a user, which could be different from that user’s team level role. For example, if a user has Member role at the team level, you can assign the View-Only, or Admin, or any available custom role to that user within a Team or Restricted scope project in that team.

Assign project level role to a user

1. Navigate to your W&B Project.
2. Select the Overview tab on the left column.
3. Go to the Users tab in the project.
4. Click the currently assigned role for the pertinent user in the Project Role field, which should open up a dropdown listing the other available roles.
5. Select another role from the dropdown. It should save instantly.

Other key things to note for project level roles

• By default, project level roles for all users in a team or restricted scoped project inherit their respective team level roles.
• You can not change the project level role of a user who has View-only role at the team level.
• If the project level role for a user within a particular project is same as the team level role, and at some point if a team admin changes the team level role, the relevant project role is automatically changed to track the team level role.
• If you change the project level role for a user within a particular project such that it is different from the team level role, and at some point if a team admin changes the team level role, the relevant project level role remains as is.
• If you remove a user from a restricted project when their project level role was different from the team level role, and if you then add the user back to the project after some time, they would inherit the team level role due to the default behavior. If needed, you would need to change the project level role again to be different from the team level role.

2.3 - Automate user and team management

SCIM API

Use SCIM API to manage users, and the teams they belong to, in an efficient and repeatable manner. You can also use the SCIM API to manage custom roles or assign roles to users in your W&B organization. Role endpoints are not part of the official SCIM schema. W&B adds role endpoints to support automated management of custom roles.

SCIM API is especially useful if you want to:

• manage user provisioning and de-provisioning at scale
• manage users with a SCIM-supporting Identity Provider

There are broadly three categories of SCIM API - User, Group, and Roles.

User SCIM API

User SCIM API allows for creating, deactivating, getting the details of a user, or listing all users in a W&B organization. This API also supports assigning predefined or custom roles to users in an organization.

Group SCIM API

Group SCIM API allows for managing W&B teams, including creating or removing teams in an organization. Use the PATCH Group to add or remove users in an existing team.

Custom role API

Custom role SCIM API allows for managing custom roles, including creating, listing, or updating custom roles in an organization.

W&B Python SDK API

Just like how SCIM API allows you to automate user and team management, you can also use some of the methods available in the W&B Python SDK API for that purpose. Keep a note of the following methods:

2.4 - Manage users, groups, and roles with SCIM

The System for Cross-domain Identity Management (SCIM) API allows instance or organization admins to manage users, groups, and custom roles in their W&B organization. SCIM groups map to W&B teams.

The SCIM API is accessible at <host-url>/scim/ and supports the /Users and /Groups endpoints with a subset of the fields found in the RC7643 protocol. It additionally includes the /Roles endpoints which are not part of the official SCIM schema. W&B adds the /Roles endpoints to support automated management of custom roles in W&B organizations.

Authentication

The SCIM API is accessible by instance or organization admins using basic authentication with their API key. With basic authentication, send the HTTP request with the Authorization header that contains the word Basic followed by a space and a base64-encoded string for username:password where password is your API key. For example, to authorize as demo:p@55w0rd, the header should be Authorization: Basic ZGVtbzpwQDU1dzByZA==.

User resource

The SCIM user resource maps to W&B users.

Get user

• Endpoint: <host-url>/scim/Users/{id}
• Method: GET
• Description: Retrieve the information for a specific user in your SaaS Cloud organization or your Dedicated Cloud or Self-managed instance by providing the user’s unique ID.
• Request Example:

GET /scim/Users/abc

• Response Example:

(Status 200)

{
    "active": true,
    "displayName": "Dev User 1",
    "emails": {
        "Value": "dev-user1@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "abc",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Users/abc"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user1"
}

List users

• Endpoint: <host-url>/scim/Users
• Method: GET
• Description: Retrieve the list of all users in your SaaS Cloud organization or your Dedicated Cloud or Self-managed instance.
• Request Example:

GET /scim/Users

• Response Example:

(Status 200)

{
    "Resources": [
        {
            "active": true,
            "displayName": "Dev User 1",
            "emails": {
                "Value": "dev-user1@test.com",
                "Display": "",
                "Type": "",
                "Primary": true
            },
            "id": "abc",
            "meta": {
                "resourceType": "User",
                "created": "2023-10-01T00:00:00Z",
                "lastModified": "2023-10-01T00:00:00Z",
                "location": "Users/abc"
            },
            "schemas": [
                "urn:ietf:params:scim:schemas:core:2.0:User"
            ],
            "userName": "dev-user1"
        }
    ],
    "itemsPerPage": 9999,
    "schemas": [
        "urn:ietf:params:scim:api:messages:2.0:ListResponse"
    ],
    "startIndex": 1,
    "totalResults": 1
}

Create user

• Endpoint: <host-url>/scim/Users
• Method: POST
• Description: Create a new user resource.
• Supported Fields:

• Request Example:

POST /scim/Users

{
  "schemas": [
    "urn:ietf:params:scim:schemas:core:2.0:User"
  ],
  "emails": [
    {
      "primary": true,
      "value": "admin-user2@test.com"
    }
  ],
  "userName": "dev-user2"
}

• Response Example:

(Status 201)

{
    "active": true,
    "displayName": "Dev User 2",
    "emails": {
        "Value": "dev-user2@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "def",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "location": "Users/def"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user2"
}

Delete user

• Endpoint: <host-url>/scim/Users/{id}
• Method: DELETE
• Description: Fully delete a user from your SaaS Cloud organization or your Dedicated Cloud or Self-managed instance by providing the user’s unique ID. Use the Create user API to add the user again to the organization or instance if needed.
• Request Example:

DELETE /scim/Users/abc

• Response Example:

(Status 204)

Deactivate user

• Endpoint: <host-url>/scim/Users/{id}
• Method: PATCH
• Description: Temporarily deactivate a user in your Dedicated Cloud or Self-managed instance by providing the user’s unique ID. Use the Reactivate user API to reactivate the user when needed.
• Supported Fields:

• Request Example:

PATCH /scim/Users/abc

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [
        {
            "op": "replace",
            "value": {"active": false}
        }
    ]
}

• Response Example: This returns the User object.

(Status 200)

{
    "active": true,
    "displayName": "Dev User 1",
    "emails": {
        "Value": "dev-user1@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "abc",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Users/abc"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user1"
}

Reactivate user

• Endpoint: <host-url>/scim/Users/{id}
• Method: PATCH
• Description: Reactivate a deactivated user in your Dedicated Cloud or Self-managed instance by providing the user’s unique ID.
• Supported Fields:

• Request Example:

PATCH /scim/Users/abc

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [
        {
            "op": "replace",
            "value": {"active": true}
        }
    ]
}

• Response Example: This returns the User object.

(Status 200)

{
    "active": true,
    "displayName": "Dev User 1",
    "emails": {
        "Value": "dev-user1@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "abc",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Users/abc"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user1"
}

Assign organization-level role to user

• Endpoint: <host-url>/scim/Users/{id}
• Method: PATCH
• Description: Assign an organization-level role to a user. The role can be one of admin, viewer or member as described here. For SaaS Cloud, ensure that you have configured the correct organization for SCIM API in user settings.
• Supported Fields:

• Request Example:

PATCH /scim/Users/abc

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [
        {
            "op": "replace",
            "path": "organizationRole",
            "value": "admin" // will set the user's organization-scoped role to admin
        }
    ]
}

• Response Example: This returns the User object.

(Status 200)

{
    "active": true,
    "displayName": "Dev User 1",
    "emails": {
        "Value": "dev-user1@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "abc",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Users/abc"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user1",
    "teamRoles": [  // Returns the user's roles in all the teams that they are a part of
        {
            "teamName": "team1",
            "roleName": "admin"
        }
    ],
    "organizationRole": "admin" // Returns the user's role at the organization scope
}

Assign team-level role to user

• Endpoint: <host-url>/scim/Users/{id}
• Method: PATCH
• Description: Assign a team-level role to a user. The role can be one of admin, viewer, member or a custom role as described here. For SaaS Cloud, ensure that you have configured the correct organization for SCIM API in user settings.
• Supported Fields:

• Request Example:

PATCH /scim/Users/abc

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [
        {
            "op": "replace",
            "path": "teamRoles",
            "value": [
                {
                    "roleName": "admin", // role name is case insensitive for predefined roles and case sensitive for custom roles
                    "teamName": "team1" // will set the user's role in the team team1 to admin
                }
            ]
        }
    ]
}

• Response Example: This returns the User object.

(Status 200)

{
    "active": true,
    "displayName": "Dev User 1",
    "emails": {
        "Value": "dev-user1@test.com",
        "Display": "",
        "Type": "",
        "Primary": true
    },
    "id": "abc",
    "meta": {
        "resourceType": "User",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Users/abc"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User"
    ],
    "userName": "dev-user1",
    "teamRoles": [  // Returns the user's roles in all the teams that they are a part of
        {
            "teamName": "team1",
            "roleName": "admin"
        }
    ],
    "organizationRole": "admin" // Returns the user's role at the organization scope
}

Group resource

The SCIM group resource maps to W&B teams, that is, when you create a SCIM group in a W&B deployment, it creates a W&B team. Same applies to other group endpoints.

Get team

• Endpoint: <host-url>/scim/Groups/{id}
• Method: GET
• Description: Retrieve team information by providing the team’s unique ID.
• Request Example:

GET /scim/Groups/ghi

• Response Example:

(Status 200)

{
    "displayName": "wandb-devs",
    "id": "ghi",
    "members": [
        {
            "Value": "abc",
            "Ref": "",
            "Type": "",
            "Display": "dev-user1"
        }
    ],
    "meta": {
        "resourceType": "Group",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Groups/ghi"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:Group"
    ]
}

List teams

• Endpoint: <host-url>/scim/Groups
• Method: GET
• Description: Retrieve a list of teams.
• Request Example:

GET /scim/Groups

• Response Example:

(Status 200)

{
    "Resources": [
        {
            "displayName": "wandb-devs",
            "id": "ghi",
            "members": [
                {
                    "Value": "abc",
                    "Ref": "",
                    "Type": "",
                    "Display": "dev-user1"
                }
            ],
            "meta": {
                "resourceType": "Group",
                "created": "2023-10-01T00:00:00Z",
                "lastModified": "2023-10-01T00:00:00Z",
                "location": "Groups/ghi"
            },
            "schemas": [
                "urn:ietf:params:scim:schemas:core:2.0:Group"
            ]
        }
    ],
    "itemsPerPage": 9999,
    "schemas": [
        "urn:ietf:params:scim:api:messages:2.0:ListResponse"
    ],
    "startIndex": 1,
    "totalResults": 1
}

Create team

• Endpoint: <host-url>/scim/Groups
• Method: POST
• Description: Create a new team resource.
• Supported Fields:

• Request Example:

Creating a team called wandb-support with dev-user2 as its member.

POST /scim/Groups

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "displayName": "wandb-support",
    "members": [
        {
            "value": "def"
        }
    ]
}

• Response Example:

(Status 201)

{
    "displayName": "wandb-support",
    "id": "jkl",
    "members": [
        {
            "Value": "def",
            "Ref": "",
            "Type": "",
            "Display": "dev-user2"
        }
    ],
    "meta": {
        "resourceType": "Group",
        "created": "2023-10-01T00:00:00Z",
        "lastModified": "2023-10-01T00:00:00Z",
        "location": "Groups/jkl"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:Group"
    ]
}
