The Weave Trace view helps you make sense of complex execution paths in your LLM and agentic apps. Whether you’re debugging an agentic app with dozens of nested calls, or tracking the flow of a single model prediction, the Trace view provides a clear visualization of what happened. It also provides alternate ways to view and understand your application flow. This guide is for developers who use Weave to instrument LLM or agentic applications and want to inspect the resulting traces. It describes how to move through the trace stack, filter and search for functions called by your code, switch between visual representations, and more. The following sections describe how to open the Trace view, orient yourself within the Traces page, navigate and filter a trace, switch between alternative visualizations, and inspect details for a specific op.

​
Get started

Follow these steps to open the Trace view for a project so you can begin inspecting traces:
  1. Navigate to https://wandb.ai and select your project.
  2. In the project sidebar, select Traces to view all traces saved for your project.
  3. Select a trace to open the Trace Details view. The Trace Details view displays additional panels with a hierarchical breakdown of the trace execution.

​
Traces page overview

The Traces page is composed of three core panels:
  • Left panel: A sortable, paginated list of all traces for the project.
    • This traces table includes additional data such as tokens, cost, and latency.
  • Center panel: Interactive trace view for a selected trace. The trace tree shows a hierarchy of all the methods tracked within the trace.
    • The trace tree displays ops, which are @weave.op()-decorated functions that were called during the trace.
  • Right panel: Details for a selected op within the selected trace.

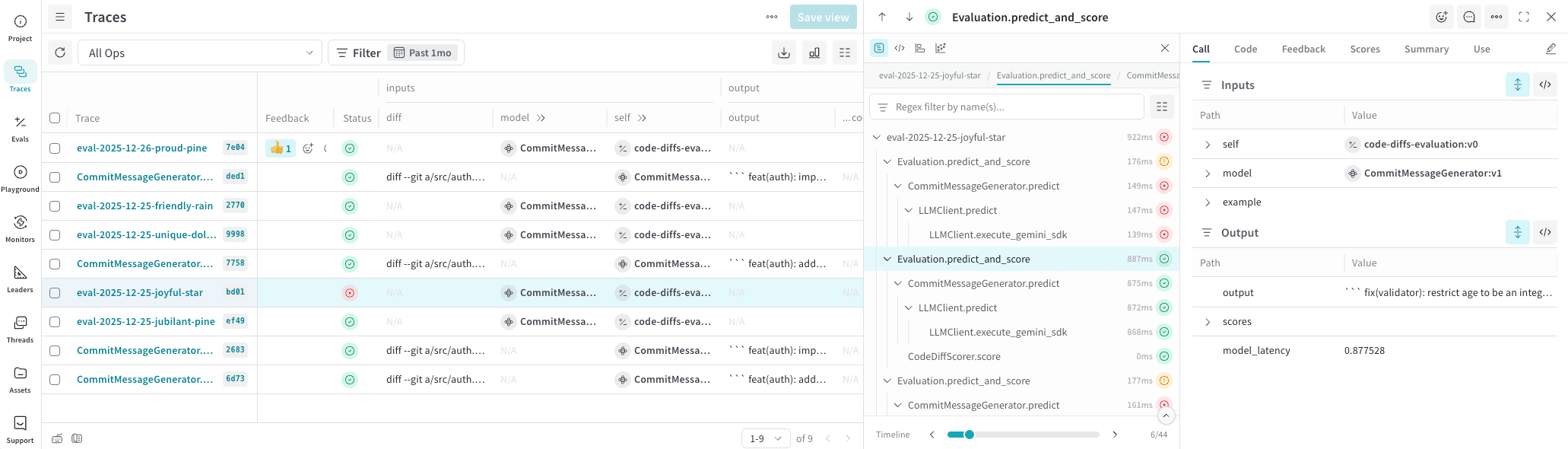

Traces page showing a selected trace and selected op details

​
Filter within a trace

You can filter the contents of a trace using the following controls:
  • Regex filter by name(s): Use the text field above the trace tree to filter ops by name or type, such as tool, openai.response.create.
  • Metrics: Control whether to display the following data metrics when available: cost, tokens, and latency.
The trace tree shows a hierarchy of all the methods tracked within the trace. To move up or down the tree, use Cmd (macOS) or Alt (Windows/Linux) + Up Arrow (↑) or Down Arrow (↓). Several scrubbers below the trace tree provide rapid navigation across states within it. You can use the sliders to navigate through your trace. Expand the panel to see all available scrubbers:
  • Timeline: Chronological order of events within the trace.
  • Peers: Ops sharing the same type. For example, if you’re examining details of a function called predict, you can use this scrubber to immediately jump to the next execution of predict within the trace.
  • Siblings: Ops with the same parent. Use this scrubber to iterate over ops nested under the parent function call.
  • Stack: Traverse up or down the call stack.
  • Path: (Only available in code composition view) Iterate through all calls with the same code path as the selected call.

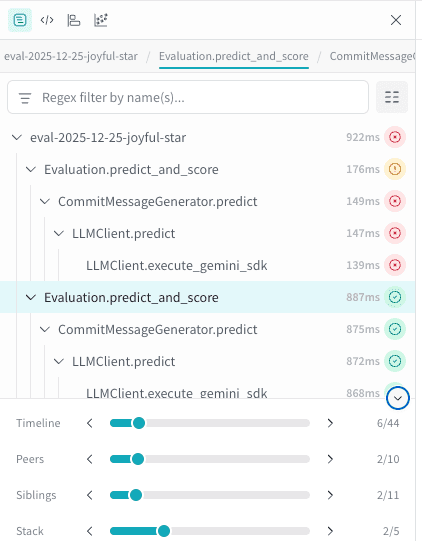

Trace tree panel showing search filter and scrubbers

​
Alternative trace tree views

At the top of the panel, you can switch between multiple visual representations of the trace tree based on your debugging needs. Use code composition view to understand call logic, flame graph view to understand performance over time, and graph view to understand structure. The following sections describe each available view.

​
Traces (default)

The default view of the trace tree shows stack hierarchy, cost per op (if available), execution time, and status indicators.

​
Code composition view

In the code composition view, boxes represent ops and their nested calls. This is helpful for visualizing the flow of function calls. In this view, you can select a box to drill into that op and filter the call path.

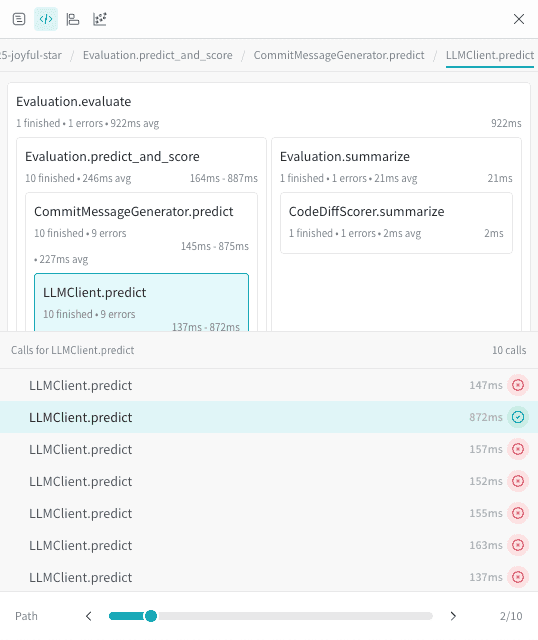

Trace view showing the code view of a trace

​
Flame graph

The flame graph view provides a timeline-based visualization of execution depth and duration. This is helpful when you want to understand performance diagnostics over time. You can select into frames to isolate sub-traces.

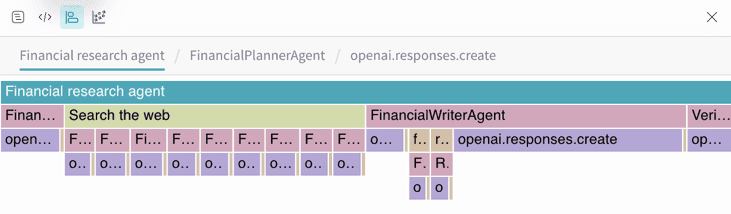

Trace view showing a flame graph of ops within a trace

​
Graph view

The graph view shows hierarchical relationships between ops. This is helpful for understanding parent/child relationships.
Trace view showing a functional graph view of ops and relationships within a trace

​
View details for a trace op

After you select an op in the trace tree, details for that op display in the next panel. These details are grouped into the following tabs:
  • Call: The input and output to the op execution.
  • Code: The code that was used when the call was made.
  • Feedback: Any available feedback for the op. You can provide feedback directly within Weave or through the API.
  • Scores: Any available scores for the op. Calls are scored by running Evaluations.
  • Summary: General information about the op.
  • Use: Code snippets that you can use to programmatically retrieve the call and add reactions, notes, or feedback.
